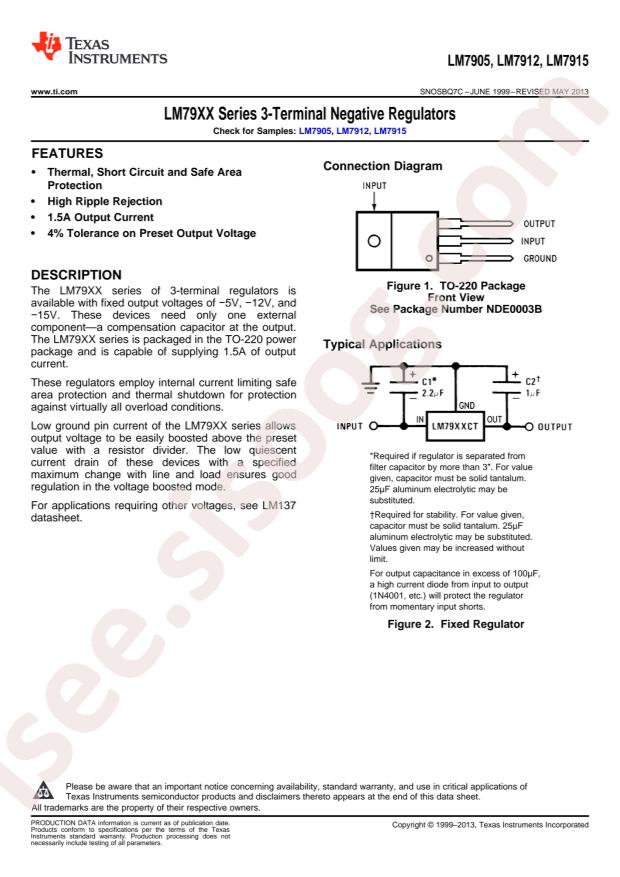

دیتاشیت LM7905CT

TO220B03 Pkg Drawing

مشخصات دیتاشیت

نام دیتاشیت TO220B03 Pkg Drawing
حجم فایل 99.003 کیلوبایت
نوع فایل pdf
تعداد صفحات 1

دانلود دیتاشیت TO220B03 Pkg Drawing

TO220B03 Pkg Drawing Datasheet

مشخصات

  • RoHS: true
  • Category: Power Supply Chip/Linear Voltage Regulators (LDO)
  • Datasheet: Texas Instruments LM7905CT
  • Output Type: Fixed
  • Output Current: 1A
  • Output Voltage: 5V
  • Dropout Voltage: 2V@(1A)
  • Output Polarity: Negative
  • Number of Outputs: 1
  • Maximum Input Voltage: 35V
  • Operating Temperature: 0°C~+125°C
  • Quiescent Current (Ground Current): 1mA
  • Power Supply Rejection Ratio (PSRR): 66dB@(120Hz)
  • Package: TO-220
  • Manufacturer: Texas Instruments
  • Series: -
  • Packaging: Tube
  • Part Status: Obsolete
  • Output Configuration: Negative
  • Number of Regulators: 1
  • Voltage - Input (Max): -35V
  • Voltage - Output (Min/Fixed): -5V
  • Voltage - Output (Max): -
  • Voltage Dropout (Max): 2V @ 1A (Typ)
  • Current - Output: 1A
  • Current - Quiescent (Iq): 6mA
  • PSRR: 60dB (120Hz)
  • Control Features: -
  • Protection Features: Over Temperature, Short Circuit
  • Mounting Type: Through Hole
  • Package / Case: TO-220-3
  • Supplier Device Package: TO-220-3
  • Base Part Number: LM790
  • detail: Linear Voltage Regulator IC 1 Output 1A TO-220-3
