دیتاشیت MC44604P

MC44604

مشخصات دیتاشیت

نام دیتاشیت MC44604
حجم فایل 267.124 کیلوبایت
نوع فایل pdf
تعداد صفحات 22

دانلود دیتاشیت MC44604

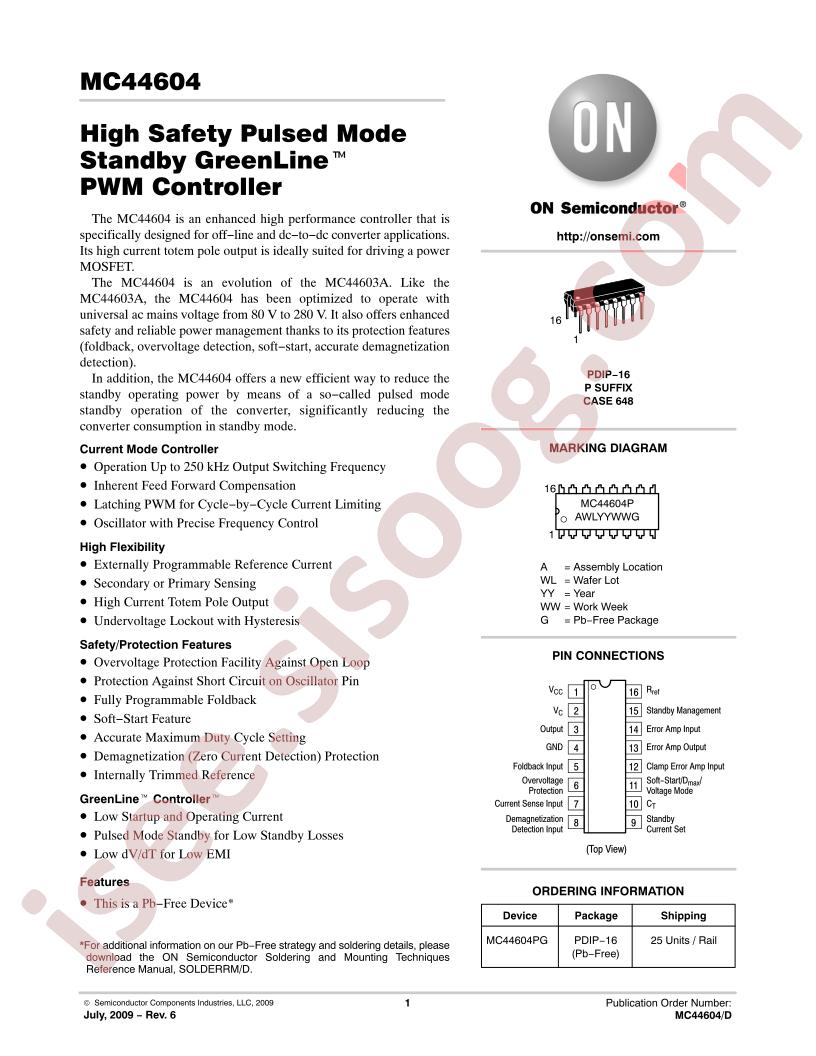

MC44604 Datasheet

مشخصات

  • Manufacturer: ON Semiconductor
  • Series: GreenLine™
  • Packaging: Tube
  • Part Status: Obsolete
  • Output Isolation: Isolated
  • Internal Switch(s): No
  • Voltage - Breakdown: -
  • Topology: Flyback
  • Voltage - Start Up: 14.5V
  • Voltage - Supply (Vcc/Vdd): 9V ~ 18V
  • Duty Cycle: 80%
  • Frequency - Switching: Up to 250kHz
  • Fault Protection: Current Limiting, Over Voltage, Short Circuit
  • Control Features: Frequency Control, Soft Start
  • Operating Temperature: -25°C ~ 150°C (TJ)
  • Package / Case: 16-DIP (0.300", 7.62mm)
  • Supplier Device Package: 16-PDIP
  • Mounting Type: Through Hole
  • Base Part Number: MC44604
  • detail: Converter Offline Flyback Topology Up to 250kHz 16-PDIP
