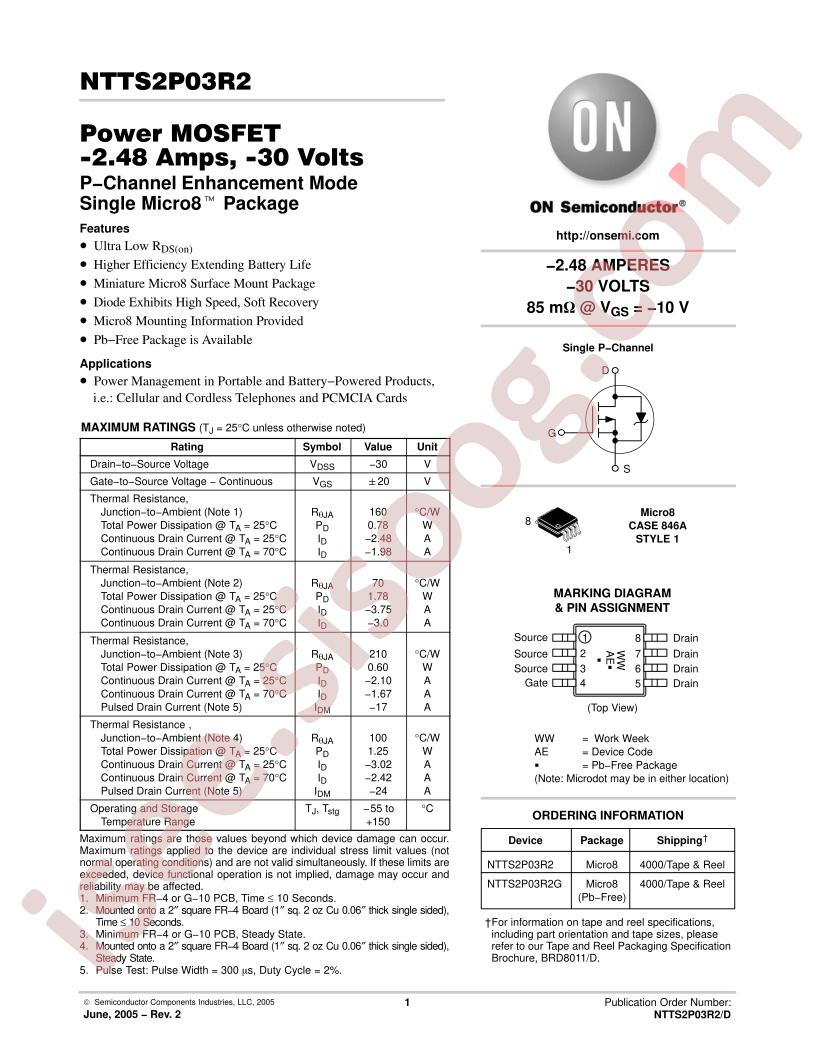

NTTS2P03R2 دیتاشیت
مشخصات دیتاشیت
|
نام دیتاشیت
|
NTTS2P03R2
|
|
حجم فایل
|
76.77
کیلوبایت
|
|
نوع فایل
|
pdf
|
|
تعداد صفحات
|
6
|
مشخصات فنی
-
Manufacturer:
ON Semiconductor
-
Series:
-
-
Packaging:
Tape & Reel (TR)
-
Part Status:
Obsolete
-
FET Type:
P-Channel
-
Technology:
MOSFET (Metal Oxide)
-
Drain to Source Voltage (Vdss):
30V
-
Current - Continuous Drain (Id) @ 25°C:
2.1A (Ta)
-
Drive Voltage (Max Rds On, Min Rds On):
4.5V, 10V
-
Rds On (Max) @ Id, Vgs:
85mOhm @ 2.48A, 10V
-
Vgs(th) (Max) @ Id:
3V @ 250µA
-
Gate Charge (Qg) (Max) @ Vgs:
22nC @ 4.5V
-
Vgs (Max):
±20V
-
Input Capacitance (Ciss) (Max) @ Vds:
500pF @ 24V
-
FET Feature:
-
-
Power Dissipation (Max):
600mW (Ta)
-
Operating Temperature:
-55°C ~ 150°C (TJ)
-
Mounting Type:
Surface Mount
-
Supplier Device Package:
Micro8™
-
Package / Case:
8-TSSOP, 8-MSOP (0.118", 3.00mm Width)
-
Base Part Number:
NTTS2P
-
detail:
P-Channel 30V 2.1A (Ta) 600mW (Ta) Surface Mount Micro8™
