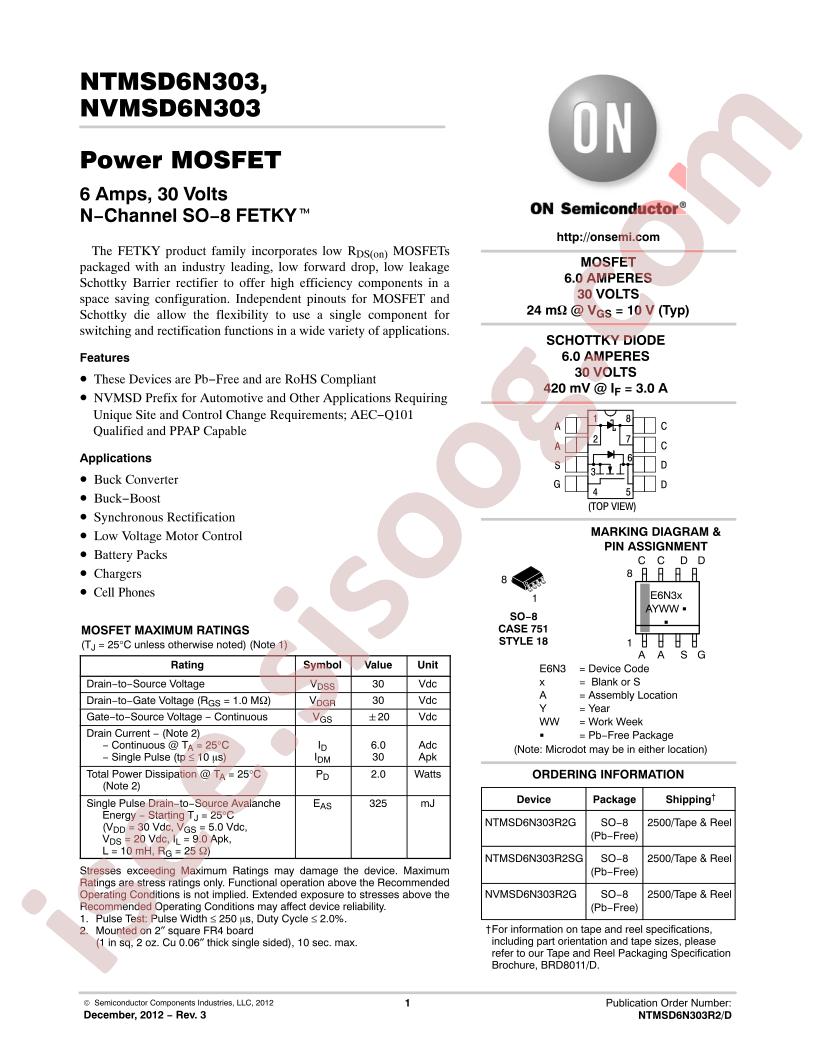

NTMSD6N303R2 دیتاشیت
مشخصات دیتاشیت
|
نام دیتاشیت
|
NTMSD6N303R2
|
|
حجم فایل
|
151.34
کیلوبایت
|
|
نوع فایل
|
pdf
|
|
تعداد صفحات
|
11
|
مشخصات فنی
-
Manufacturer:
ON Semiconductor
-
Series:
FETKY™
-
Packaging:
Tape & Reel (TR)
-
Part Status:
Obsolete
-
FET Type:
N-Channel
-
Technology:
MOSFET (Metal Oxide)
-
Drain to Source Voltage (Vdss):
30V
-
Current - Continuous Drain (Id) @ 25°C:
6A (Ta)
-
Drive Voltage (Max Rds On, Min Rds On):
4.5V, 10V
-
Rds On (Max) @ Id, Vgs:
32mOhm @ 6A, 10V
-
Vgs(th) (Max) @ Id:
2.5V @ 250µA
-
Gate Charge (Qg) (Max) @ Vgs:
30nC @ 10V
-
Vgs (Max):
±20V
-
Input Capacitance (Ciss) (Max) @ Vds:
950pF @ 24V
-
FET Feature:
Schottky Diode (Isolated)
-
Power Dissipation (Max):
2W (Ta)
-
Operating Temperature:
-55°C ~ 150°C (TJ)
-
Mounting Type:
Surface Mount
-
Supplier Device Package:
8-SOIC
-
Package / Case:
8-SOIC (0.154", 3.90mm Width)
-
Base Part Number:
NTMSD6
-
detail:
N-Channel 30V 6A (Ta) 2W (Ta) Surface Mount 8-SOIC
