دیتاشیت MUR3060PTG

MUR3020, 40, 60 PT

مشخصات دیتاشیت

نام دیتاشیت MUR3020, 40, 60 PT
حجم فایل 147.888 کیلوبایت
نوع فایل pdf
تعداد صفحات 7

دانلود دیتاشیت MUR3020, 40, 60 PT

MUR3020, 40, 60 PT Datasheet

مشخصات

  • Manufacturer: ON Semiconductor
  • Series: SWITCHMODE™
  • Packaging: Tube
  • Part Status: Obsolete
  • Diode Configuration: 1 Pair Common Cathode
  • Diode Type: Standard
  • Voltage - DC Reverse (Vr) (Max): 600V
  • Current - Average Rectified (Io) (per Diode): 15A
  • Voltage - Forward (Vf) (Max) @ If: 1.5V @ 15A
  • Speed: Fast Recovery =< 500ns, > 200mA (Io)
  • Reverse Recovery Time (trr): 60ns
  • Current - Reverse Leakage @ Vr: 10µA @ 600V
  • Operating Temperature - Junction: -65°C ~ 175°C
  • Mounting Type: Through Hole

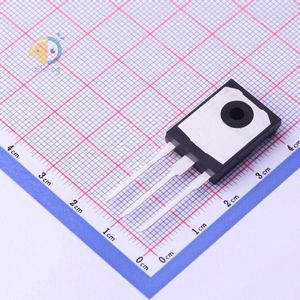

  • Package / Case: TO-218-3
  • Supplier Device Package: SOT-93
  • Base Part Number: MUR30
  • detail: Diode Array 1 Pair Common Cathode Standard 600V 15A Through Hole TO-218-3
