دیتاشیت LM3302N

LM3302 Datasheet

مشخصات دیتاشیت

نام دیتاشیت LM3302 Datasheet
حجم فایل 833.898 کیلوبایت
نوع فایل pdf
تعداد صفحات 11

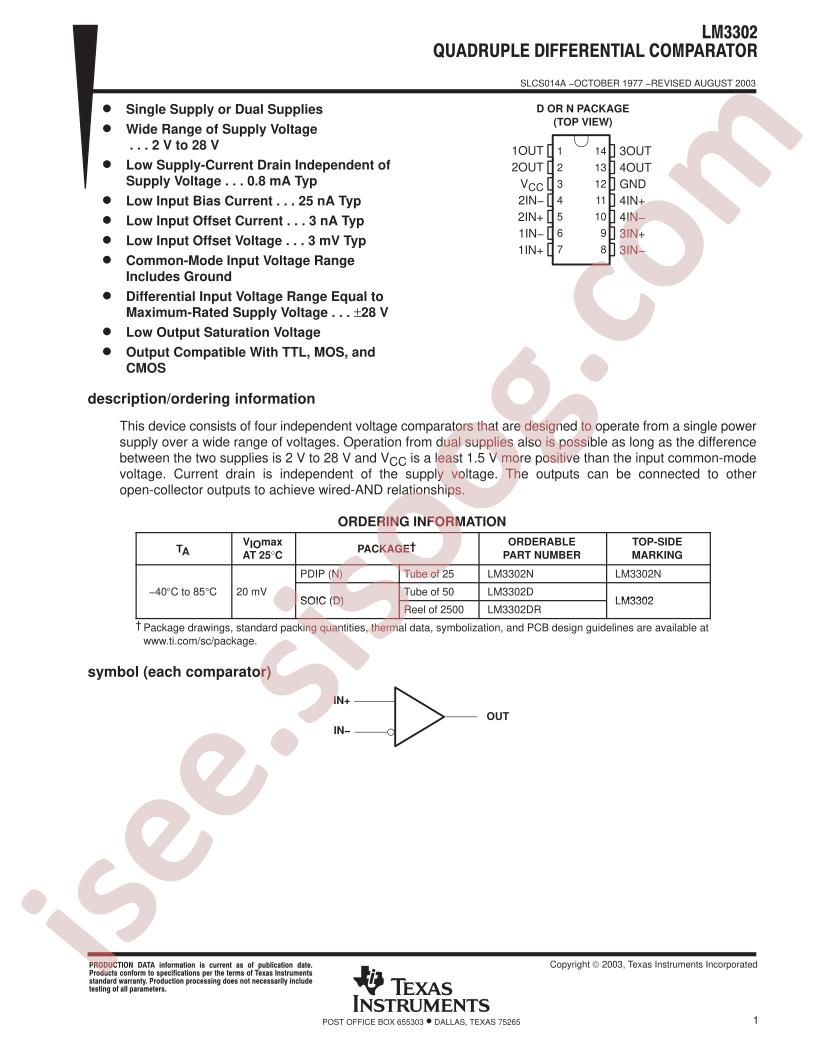

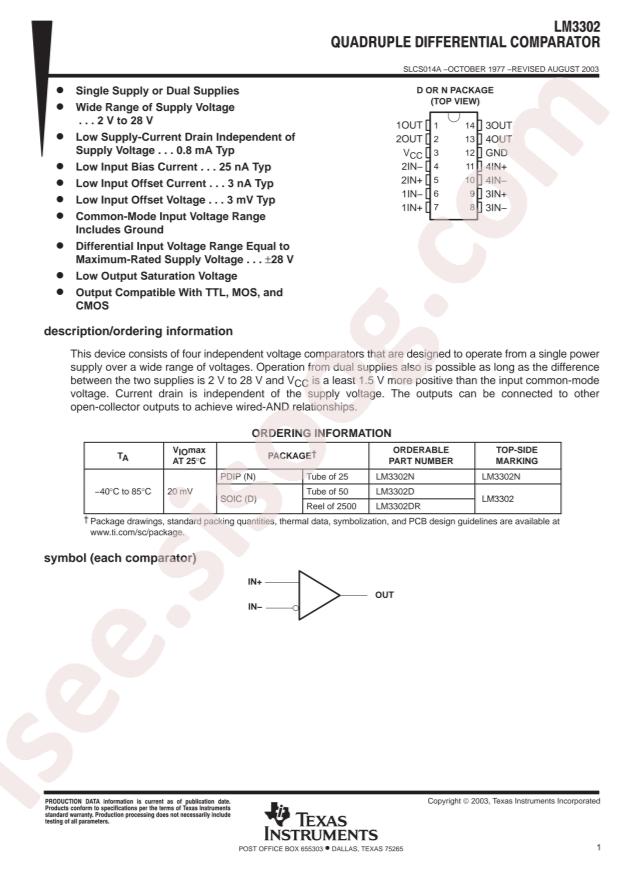

دانلود دیتاشیت LM3302 Datasheet

LM3302 Datasheet Datasheet

مشخصات

  • RoHS: true
  • Category: Operational Amplifier/Comparator/Comparators
  • Datasheet: Texas Instruments LM3302N
  • Output Type: CMOS;MOS;开集;TTL
  • Supply Voltage: 2V~28V;1V~14V
  • Number of Elements: -
  • Operating Temperature: -40°C~+85°C
  • Input Bias Current (Ib): 0.5uA
  • Input Offset Voltage (Vos): 20mV
  • Input Hysteresis Voltage (Vhys): -
  • Common Mode Rejection Ratio (CMRR): -
  • Package: PDIP-14
  • Manufacturer: Texas Instruments
  • Package / Case: 14-DIP (0.300", 7.62mm)
  • Propagation Delay (Max): -
  • Current - Quiescent (Max): 800µA
  • Voltage - Input Offset (Max): 20mV @ 28V
  • Part Status: Active
  • Current - Output (Typ): 20mA
  • Current - Input Bias (Max): 0.5µA @ 5V
  • Packaging: Tube
  • Type: General Purpose
  • CMRR, PSRR (Typ): -
  • Voltage - Supply, Single/Dual (±): 2V ~ 28V, ±1V ~ 14V
  • Series: -
  • Base Part Number: LM3302
  • Supplier Device Package: 14-PDIP
  • Mounting Type: Through Hole
  • Hysteresis: -
  • detail: Comparator General Purpose CMOS, MOS, Open-Collector, TTL 14-PDIP
