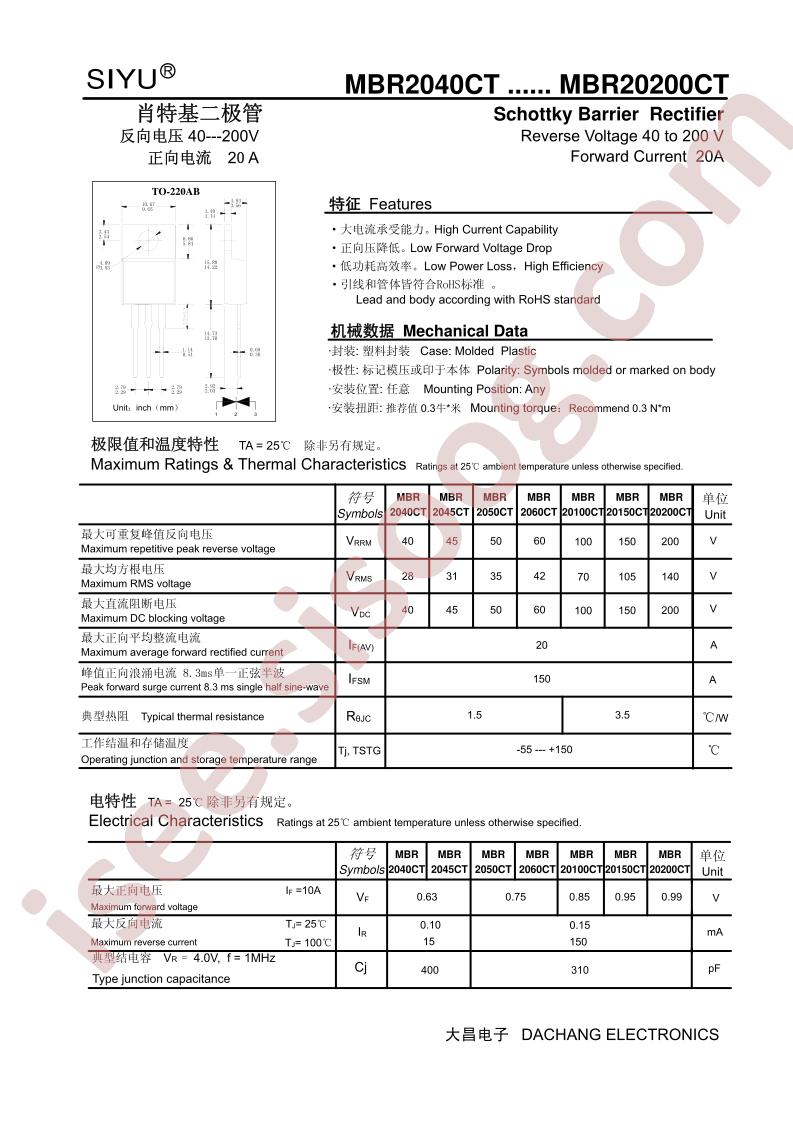

MBR2050CT دیتاشیت
مشخصات دیتاشیت
|
نام دیتاشیت
|
MBR2050CT
|
|
حجم فایل
|
138.16
کیلوبایت
|
|
نوع فایل
|
pdf
|
|
تعداد صفحات
|
2
|
مشخصات فنی
-
RoHS:
true
-
Category:
Diodes/Schottky Barrier Diodes (SBD)
-
Datasheet:
SMC(Sangdest Microelectronicstronic (Nanjing)) MBR2050CT
-
Diode Configuration:
Dual Common Cathode
-
Reverse Voltage (Vr):
50V
-
Forward Voltage (Vf@If):
850mV@20A
-
Reverse Leakage Current (Ir):
1mA@50V
-
Average Rectified Current (Io):
10A
-
Package:
TO-220
-
Manufacturer:
SMC(Sangdest Microelectronicstronic (Nanjing))
-
Series:
-
-
Packaging:
Tube
-
Part Status:
Obsolete
-
Diode Type:
Schottky
-
Voltage - DC Reverse (Vr) (Max):
50V
-
Current - Average Rectified (Io) (per Diode):
20A
-
Voltage - Forward (Vf) (Max) @ If:
950mV @ 20A
-
Speed:
Fast Recovery =< 500ns, > 200mA (Io)
-
Current - Reverse Leakage @ Vr:
150µA @ 50V
-
Operating Temperature - Junction:
-65°C ~ 150°C
-
Mounting Type:
Through Hole
-
Package / Case:
TO-220-3
-
Supplier Device Package:
TO-220-3
-
Base Part Number:
MBR2050
-
detail:
Diode Array 1 Pair Common Cathode Schottky 50V 20A Through Hole TO-220-3
