- LM2574, NCV2574 Series
LM2574N-012 Datasheet
Datasheet specifications
| Datasheet's name | LM2574, NCV2574 Series |
|---|---|
| File size | 302.312 KB |
| File type | |
| Number of pages | 26 |

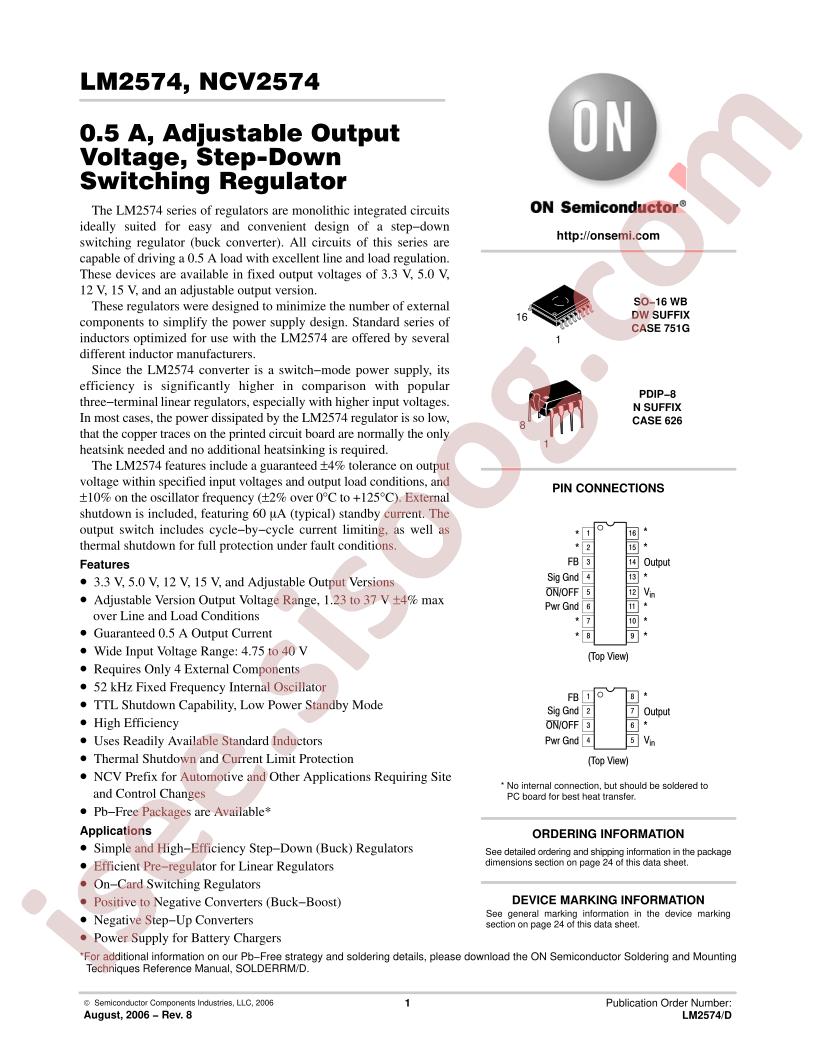

Download Datasheet LM2574, NCV2574 Series |
Download Datasheet |
|---|
Other documentations
No other documentation was found!
Technical specifications
- Manufacturer: ON Semiconductor
- Series: -
- Packaging: Tube
- Part Status: Obsolete
- Function: Step-Up, Step-Down, Step-Up/Step-Down
- Output Configuration: Positive or Negative
- Topology: Buck, Boost, Buck-Boost
- Output Type: Fixed
- Number of Outputs: 1
- Voltage - Input (Min): 4.75V
- Voltage - Input (Max): 40V
- Voltage - Output (Min/Fixed): 12V
- Voltage - Output (Max): -
- Current - Output: 500mA
- Frequency - Switching: 52kHz
- Synchronous Rectifier: No
- Operating Temperature: -40°C ~ 125°C (TJ)
- Mounting Type: Through Hole
- Package / Case: 8-DIP (0.300", 7.62mm)
- Supplier Device Package: 8-PDIP
- Base Part Number: LM2574
- detail: Buck, Boost, Buck-Boost Switching Regulator IC Positive or Negative Fixed 12V 1 Output 500mA 8-DIP (0.300", 7.62mm)
