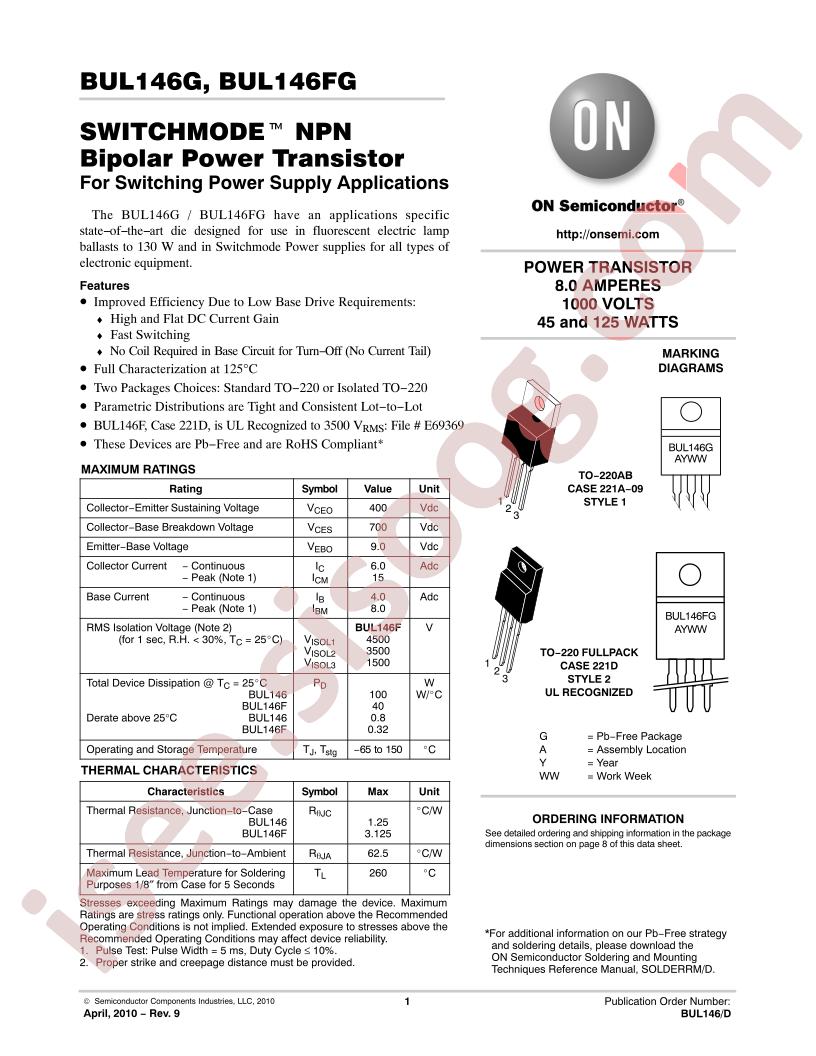

BUL146 Datasheet
Datasheet specifications
| Datasheet's name | BUL146(F) |
|---|---|
| File size | 229.648 KB |
| File type | |
| Number of pages | 11 |
Download Datasheet BUL146(F) |
Download Datasheet |
|---|
Other documentations
No other documentation was found!
Technical specifications
- Manufacturer: ON Semiconductor
- Series: SWITCHMODE™
- Packaging: Tube
- Part Status: Obsolete
- Transistor Type: NPN
- Current - Collector (Ic) (Max): 6A
- Voltage - Collector Emitter Breakdown (Max): 400V
- Vce Saturation (Max) @ Ib, Ic: 700mV @ 600mA, 3A
- Current - Collector Cutoff (Max): 100µA
- DC Current Gain (hFE) (Min) @ Ic, Vce: 14 @ 500mA, 5V
- Power - Max: 100W
- Frequency - Transition: 14MHz
- Operating Temperature: -65°C ~ 150°C (TJ)
- Mounting Type: Through Hole
- Package / Case: TO-220-3
- Supplier Device Package: TO-220AB
- Base Part Number: BUL146
- detail: Bipolar (BJT) Transistor NPN 400V 6A 14MHz 100W Through Hole TO-220AB
