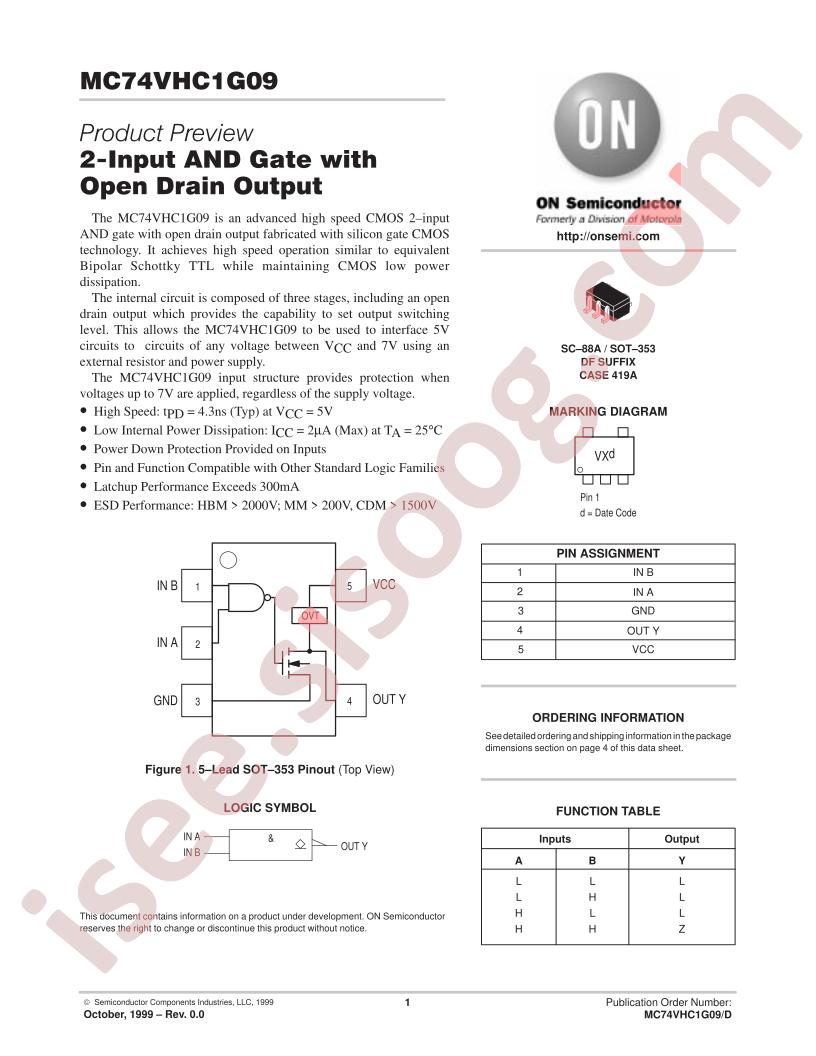

MC74VHC1G09DFT1 دیتاشیت
مشخصات دیتاشیت
|
نام دیتاشیت
|
MC74VHC1G09DFT1
|
|
حجم فایل
|
202.849
کیلوبایت
|
|
نوع فایل
|
pdf
|
|
تعداد صفحات
|
8
|
مشخصات فنی
-
Manufacturer:
ON Semiconductor
-
Series:
74VHC
-
Packaging:
Tape & Reel (TR)
-
Part Status:
Obsolete
-
Logic Type:
AND Gate
-
Number of Circuits:
1
-
Number of Inputs:
2
-
Features:
Open Drain
-
Voltage - Supply:
2V ~ 5.5V
-
Current - Quiescent (Max):
1µA
-
Current - Output High, Low:
-, 8mA
-
Logic Level - Low:
0.5V ~ 1.65V
-
Logic Level - High:
1.5V ~ 3.85V
-
Max Propagation Delay @ V, Max CL:
7.9ns @ 5V, 50pF
-
Operating Temperature:
-55°C ~ 125°C
-
Mounting Type:
Surface Mount
-
Supplier Device Package:
SC-88A (SC-70-5/SOT-353)
-
Package / Case:
5-TSSOP, SC-70-5, SOT-353
-
Base Part Number:
MC74VHC1G09
-
detail:
AND Gate IC 1 Channel Open Drain SC-88A (SC-70-5/SOT-353)
