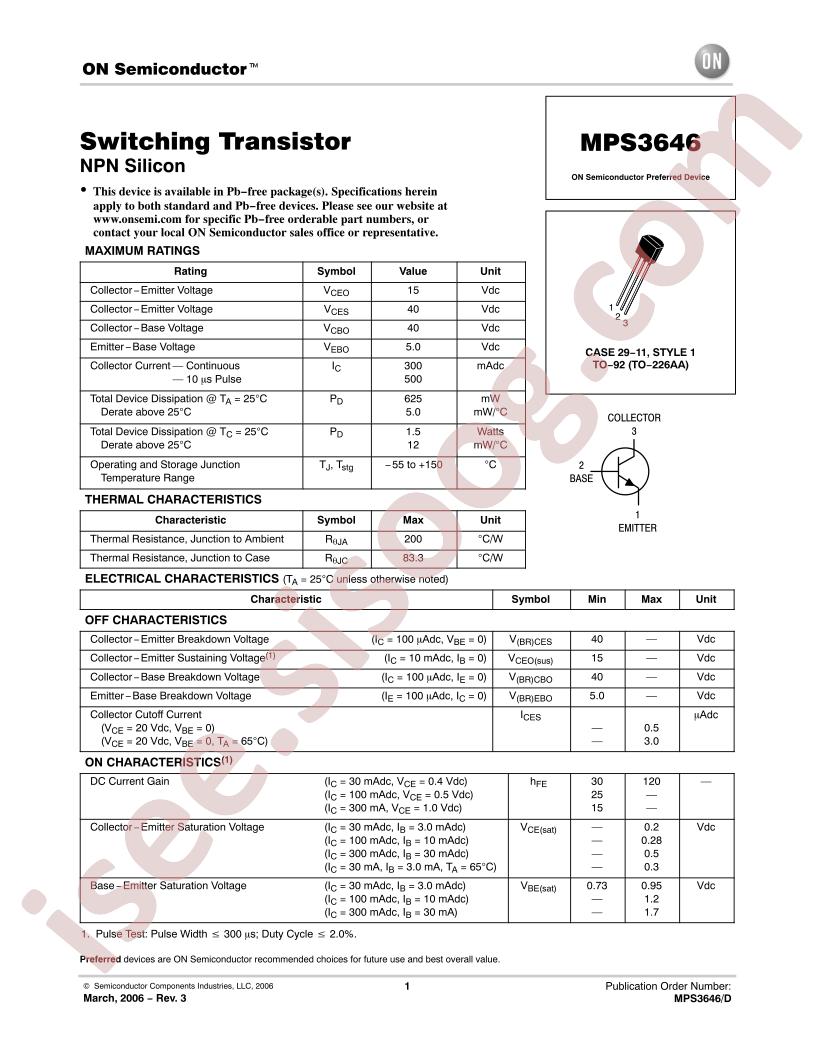

MPS3646RLRA دیتاشیت
مشخصات دیتاشیت
|
نام دیتاشیت
|
MPS3646
|
|
حجم فایل
|
126.332
کیلوبایت
|
|
نوع فایل
|
pdf
|
|
تعداد صفحات
|
7
|
مشخصات فنی
-
Manufacturer:
ON Semiconductor
-
Series:
-
-
Packaging:
Tape & Reel (TR)
-
Part Status:
Obsolete
-
Transistor Type:
NPN
-
Current - Collector (Ic) (Max):
300mA
-
Voltage - Collector Emitter Breakdown (Max):
15V
-
Vce Saturation (Max) @ Ib, Ic:
500mV @ 30mA, 300mA
-
Current - Collector Cutoff (Max):
500nA
-
DC Current Gain (hFE) (Min) @ Ic, Vce:
30 @ 30mA, 400mV
-
Power - Max:
625mW
-
Frequency - Transition:
350MHz
-
Operating Temperature:
-55°C ~ 150°C (TJ)
-
Mounting Type:
Through Hole
-
Package / Case:
TO-226-3, TO-92-3 (TO-226AA) (Formed Leads)
-
Supplier Device Package:
TO-92-3
-
Base Part Number:
MPS364
-
detail:
Bipolar (BJT) Transistor NPN 15V 300mA 350MHz 625mW Through Hole TO-92-3
