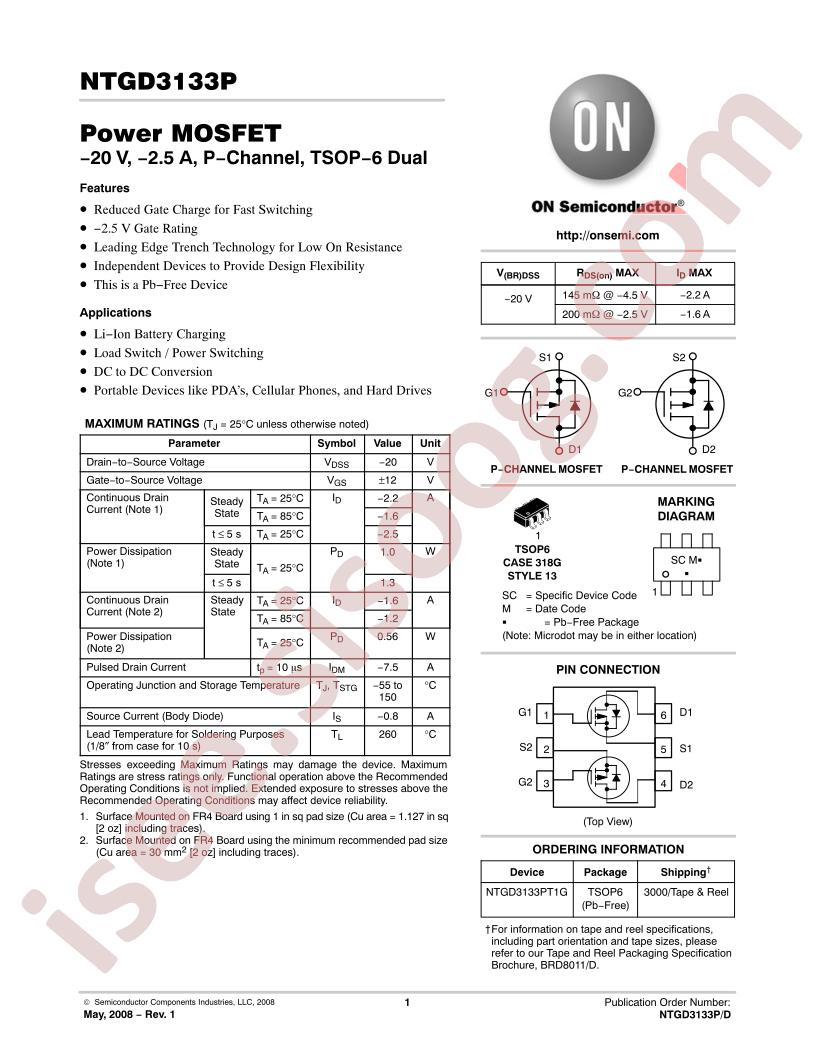

NTGD3133PT1G دیتاشیت
مشخصات دیتاشیت
|
نام دیتاشیت
|
NTGD3133P
|
|
حجم فایل
|
108.417
کیلوبایت
|
|
نوع فایل
|
pdf
|
|
تعداد صفحات
|
6
|
مشخصات فنی
-
Manufacturer:
ON Semiconductor
-
Series:
-
-
Packaging:
Tape & Reel (TR)
-
Part Status:
Obsolete
-
FET Type:
2 P-Channel (Dual)
-
FET Feature:
Logic Level Gate
-
Drain to Source Voltage (Vdss):
20V
-
Current - Continuous Drain (Id) @ 25°C:
1.6A
-
Rds On (Max) @ Id, Vgs:
145mOhm @ 2.2A, 4.5V
-
Vgs(th) (Max) @ Id:
1.4V @ 250µA
-
Gate Charge (Qg) (Max) @ Vgs:
5.5nC @ 4.5V
-
Input Capacitance (Ciss) (Max) @ Vds:
400pF @ 10V
-
Power - Max:
560mW
-
Operating Temperature:
-55°C ~ 150°C (TJ)
-
Mounting Type:
Surface Mount
-
Package / Case:
SOT-23-6 Thin, TSOT-23-6
-
Supplier Device Package:
6-TSOP
-
Base Part Number:
NTGD31
-
detail:
Mosfet Array 2 P-Channel (Dual) 20V 1.6A 560mW Surface Mount 6-TSOP
