دیتاشیت HUFA75639S3ST-F085A

HUFA75639S3ST-F085A

مشخصات دیتاشیت

نام دیتاشیت HUFA75639S3ST-F085A
حجم فایل 825.787 کیلوبایت
نوع فایل pdf
تعداد صفحات 7

دانلود دیتاشیت HUFA75639S3ST-F085A

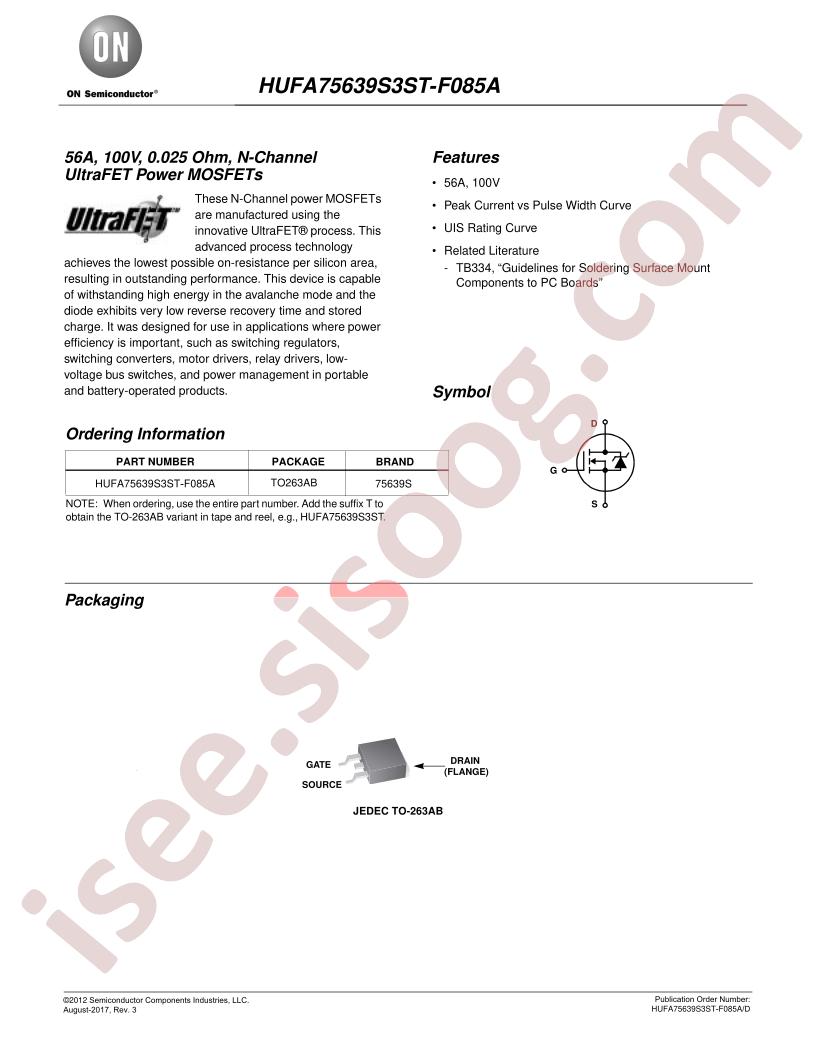

HUFA75639S3ST-F085A Datasheet

مشخصات

  • Manufacturer: ON Semiconductor
  • Series: Automotive, AEC-Q101, UltraFET™
  • Packaging: Cut Tape (CT)
  • Part Status: Obsolete
  • FET Type: N-Channel
  • Technology: MOSFET (Metal Oxide)
  • Drain to Source Voltage (Vdss): 100V
  • Current - Continuous Drain (Id) @ 25°C: 56A (Tc)
  • Drive Voltage (Max Rds On, Min Rds On): 10V
  • Rds On (Max) @ Id, Vgs: 25mOhm @ 56A, 10V
  • Vgs(th) (Max) @ Id: 4V @ 250µA
  • Gate Charge (Qg) (Max) @ Vgs: 130nC @ 10V
  • Vgs (Max): ±20V
  • Input Capacitance (Ciss) (Max) @ Vds: 2000pF @ 25V
  • FET Feature: -
  • Power Dissipation (Max): 200W (Tc)
  • Operating Temperature: -55°C ~ 175°C (TJ)
  • Mounting Type: Surface Mount
  • Supplier Device Package: D²PAK (TO-263AB)
  • Package / Case: TO-263-3, D²Pak (2 Leads + Tab), TO-263AB
  • Base Part Number: HUFA75
  • detail: N-Channel 100V 56A (Tc) 200W (Tc) Surface Mount D²PAK (TO-263AB)
