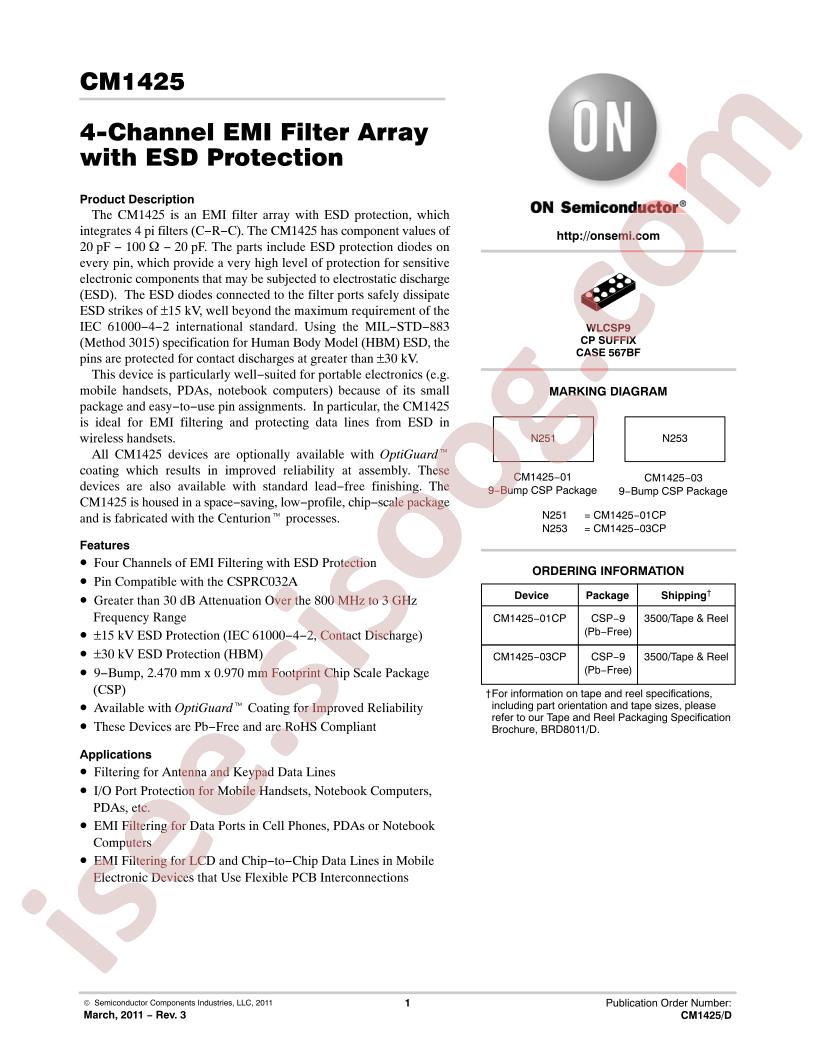

دیتاشیت CM1425-03CP
مشخصات دیتاشیت
| نام دیتاشیت |
CM1425
|
| حجم فایل |
208.919
کیلوبایت
|
| نوع فایل |
pdf
|
| تعداد صفحات |
6
|
مشخصات
-
Manufacturer:
ON Semiconductor
-
Series:
-
-
Packaging:
Tape & Reel (TR)
-
Part Status:
Obsolete
-
Type:
Low Pass
-
Filter Order:
2nd
-
Technology:
RC (Pi)
-
Number of Channels:
4
-
Center / Cutoff Frequency:
86MHz (Cutoff)
-
Attenuation Value:
30dB @ 800MHz ~ 3GHz
-
Resistance - Channel (Ohms):
100
-
Values:
R = 100Ohms, C = 20pF
-
ESD Protection:
Yes
-
Operating Temperature:
-40°C ~ 85°C
-
Applications:
Data Lines for Mobile Devices
-
Voltage - Rated:
-
-
Mounting Type:
Surface Mount
-
Package / Case:
9-UFBGA, WLCSP
-
Size / Dimension:
0.097" L x 0.038" W (2.47mm x 0.97mm)
-
Height:
0.026" (0.65mm)
-
Base Part Number:
CM1425
-
detail:
RC (Pi) EMI Filter 2nd Order Low Pass 4 Channel R = 100Ohms, C = 20pF 9-UFBGA, WLCSP
