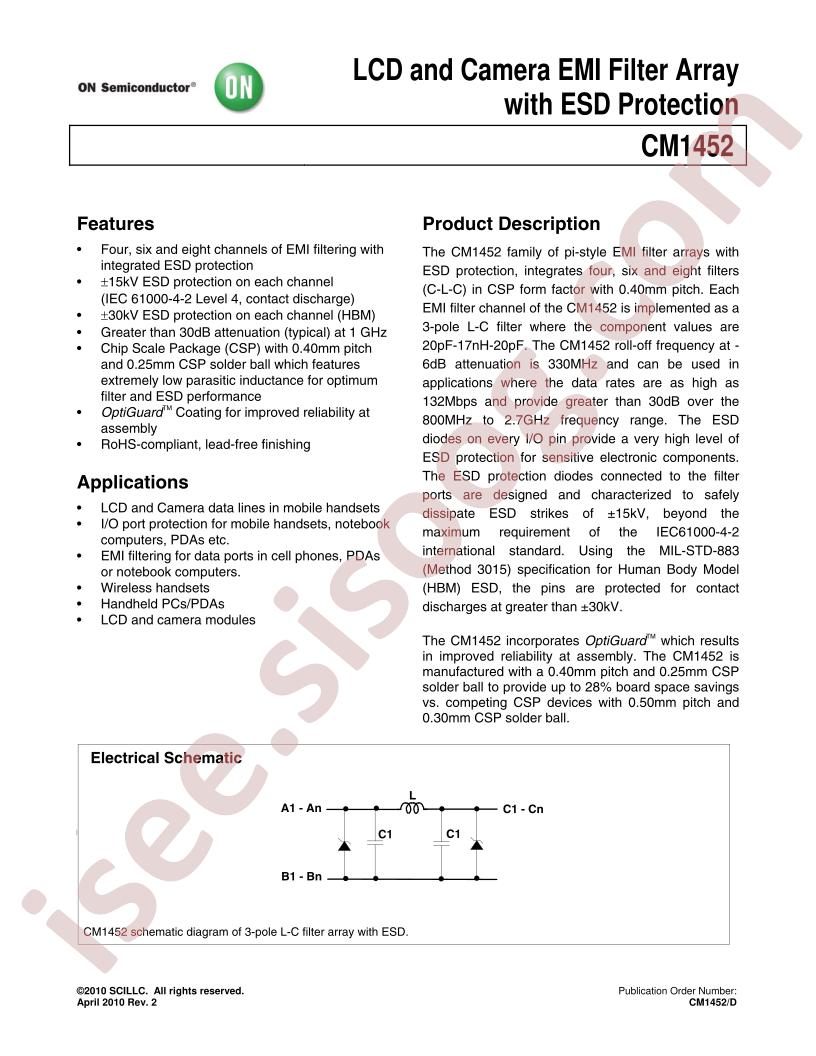

دیتاشیت CM1452-04CP
مشخصات دیتاشیت
| نام دیتاشیت |
CM1452
|
| حجم فایل |
477.87
کیلوبایت
|
| نوع فایل |
pdf
|
| تعداد صفحات |
16
|
مشخصات
-
Manufacturer:
ON Semiconductor
-
Series:
-
-
Packaging:
Tape & Reel (TR)
-
Part Status:
Obsolete
-
Type:
Low Pass
-
Filter Order:
3rd
-
Technology:
LC (Pi)
-
Number of Channels:
4
-
Center / Cutoff Frequency:
148MHz (Cutoff)
-
Attenuation Value:
30dB @ 800MHz ~ 2.7GHz
-
Resistance - Channel (Ohms):
-
-
Current:
30mA
-
Values:
L = 17nH, C = 15pF
-
ESD Protection:
Yes
-
Operating Temperature:
-40°C ~ 85°C
-
Applications:
Data Lines for Mobile Devices
-
Voltage - Rated:
-
-
Mounting Type:
Surface Mount
-

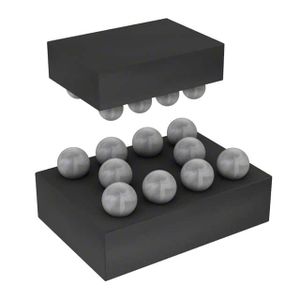

Package / Case:
10-WFBGA, WLCSP
-
Size / Dimension:
0.066" L x 0.044" W (1.67mm x 1.11mm)
-
Height:
0.027" (0.69mm)
-
Base Part Number:
CM1452
-
detail:
LC (Pi) EMI Filter 3rd Order Low Pass 4 Channel L = 17nH, C = 15pF 30mA 10-WFBGA, WLCSP
