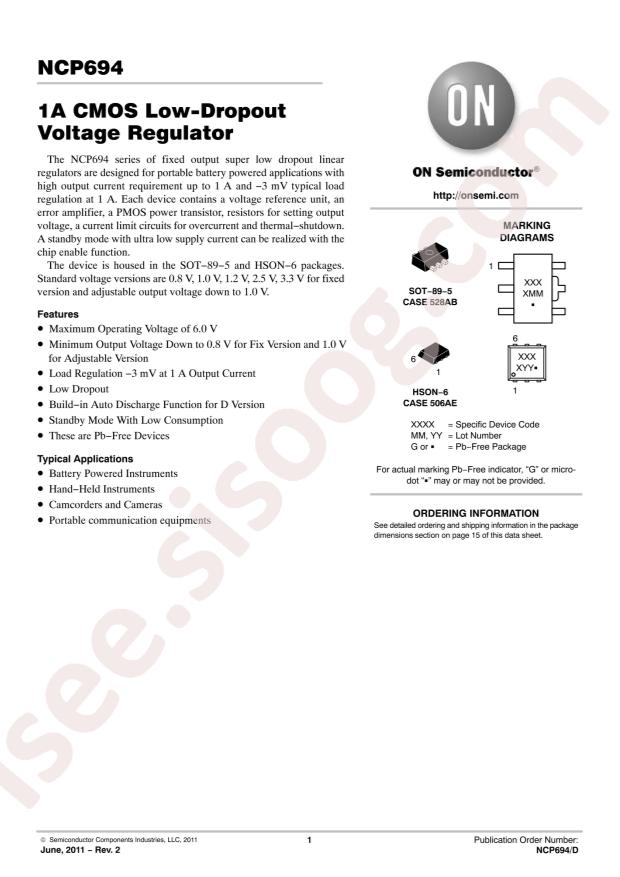

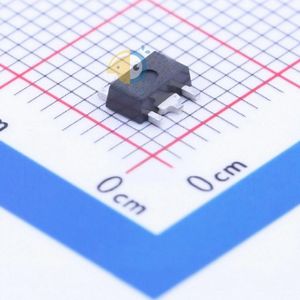

NCP694DADJHT1G دیتاشیت
مشخصات دیتاشیت
|
نام دیتاشیت
|
NCP694DADJHT1G
|
|
حجم فایل
|
65.632
کیلوبایت
|
|
نوع فایل
|
pdf
|
|
تعداد صفحات
|
17
|
مشخصات فنی
-
RoHS:
true
-
Category:
Power Supply Chip/Linear Voltage Regulators (LDO)
-
Datasheet:
onsemi NCP694DADJHT1G
-
Output Type:
Adjustable
-
Output Current:
1A
-
Output Voltage:
1V~6V
-
Dropout Voltage:
180mV@(1A)
-
Output Polarity:
Positive
-
Number of Outputs:
1
-
Maximum Input Voltage:
6V
-
Power Supply Rejection Ratio (PSRR):
70dB@(1kHz)
-
Package:
SOT-89-5
-
Manufacturer:
onsemi
-
Series:
-
-
Packaging:
Cut Tape (CT)
-
Part Status:
Obsolete
-
Output Configuration:
Positive
-
Number of Regulators:
1
-
Voltage - Input (Max):
6V
-
Voltage - Output (Min/Fixed):
1V
-
Voltage - Output (Max):
6V
-
Voltage Dropout (Max):
0.18V @ 1A (Typ)
-
Current - Output:
1A
-
Current - Quiescent (Iq):
100µA
-
PSRR:
70dB (1kHz)
-
Control Features:
Enable
-
Protection Features:
Over Current, Over Temperature
-
Operating Temperature:
-40°C ~ 85°C
-
Mounting Type:
Surface Mount
-
Package / Case:
SOT-89-5/6
-
Supplier Device Package:
SOT-89-5
-
Base Part Number:
NCP694
-
detail:
Linear Voltage Regulator IC 1 Output 1A SOT-89-5
