74LCX374MTCX دیتاشیت
مشخصات دیتاشیت
|
نام دیتاشیت
|
74LCX374MTCX
|
|
حجم فایل
|
85.657
کیلوبایت
|
|
نوع فایل
|
pdf
|
|
تعداد صفحات
|
14
|
مشخصات فنی
-
RoHS:
true
-
Type:
D-Type
-
Series:
74LCX
-
Category:
Logic ICs/Flip Flops
-
Function:
-
-
Datasheet:
onsemi 74LCX374MTCX
-
Output Type:
Tri-State;Non-Inverted
-
Sink Current:
24mA
-
Trigger Type:
上升沿
-
Source Current:
24mA
-
Supply Voltage:
2V~3.6V
-
Clock Frequency:
150MHz
-
Input Capacitance:
7pF
-
Number of Elements:
1
-
Operating Temperature:
-40°C~+85°C
-
Quiescent Current (Iq):
10uA
-
Maximum Propagation Delay:
8.5ns@3.3V,50pF
-
Number of Bits per Element:
8
-

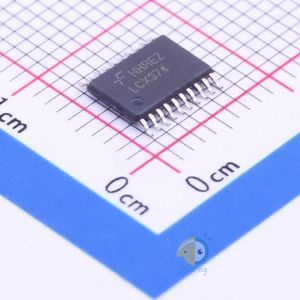

Package:
TSSOP-20
-
Manufacturer:
onsemi
-
Packaging:
Cut Tape (CT)
-
Part Status:
Obsolete
-
Max Propagation Delay @ V, Max CL:
8.5ns @ 3.3V, 50pF
-
Current - Output High, Low:
24mA, 24mA
-
Voltage - Supply:
2V ~ 3.6V
-
Current - Quiescent (Iq):
10µA
-
Mounting Type:
Surface Mount
-
Supplier Device Package:
20-TSSOP
-
Package / Case:
20-TSSOP (0.173", 4.40mm Width)
-
Base Part Number:
74LCX374
-
detail:
Flip Flop 1 Element D-Type 8 Bit Positive Edge 20-TSSOP (0.173", 4.40mm Width)
