NTMD5836NLR2G دیتاشیت

مشخصات دیتاشیت

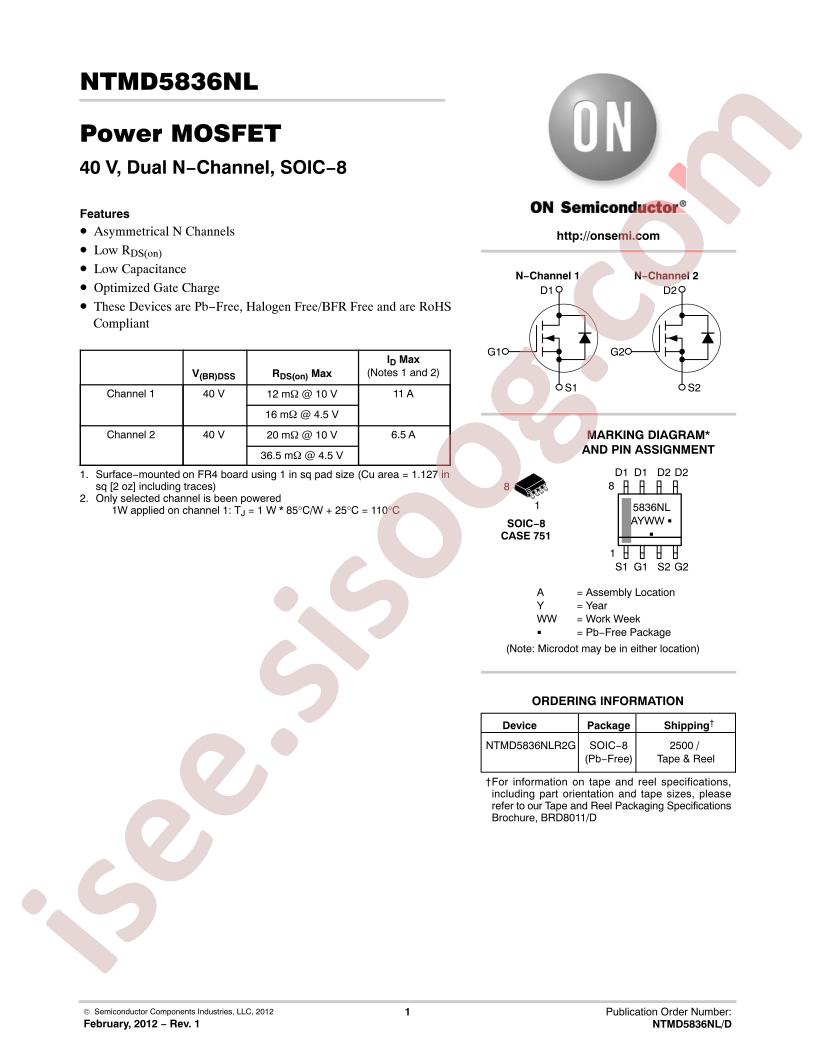

مشاهده دیتاشیت NTMD5836NL	دانلود دیتاشیت

مستندات دیگری یافت نشد!

Manufacturer: ON Semiconductor
Series: -
Packaging: Cut Tape (CT)
Part Status: Obsolete
FET Type: 2 N-Channel (Dual)
FET Feature: Logic Level Gate
Drain to Source Voltage (Vdss): 40V
Current - Continuous Drain (Id) @ 25°C: 9A, 5.7A
Rds On (Max) @ Id, Vgs: 12mOhm @ 10A, 10V
Vgs(th) (Max) @ Id: 3V @ 250µA
Gate Charge (Qg) (Max) @ Vgs: 50nC @ 10V
Input Capacitance (Ciss) (Max) @ Vds: 2120pF @ 20V
Power - Max: 1.5W
Operating Temperature: -55°C ~ 150°C (TJ)
Mounting Type: Surface Mount
Package / Case: 8-SOIC (0.154", 3.90mm Width)
Supplier Device Package: 8-SOIC
Base Part Number: NTMD58
detail: Mosfet Array 2 N-Channel (Dual) 40V 9A, 5.7A 1.5W Surface Mount 8-SOIC
