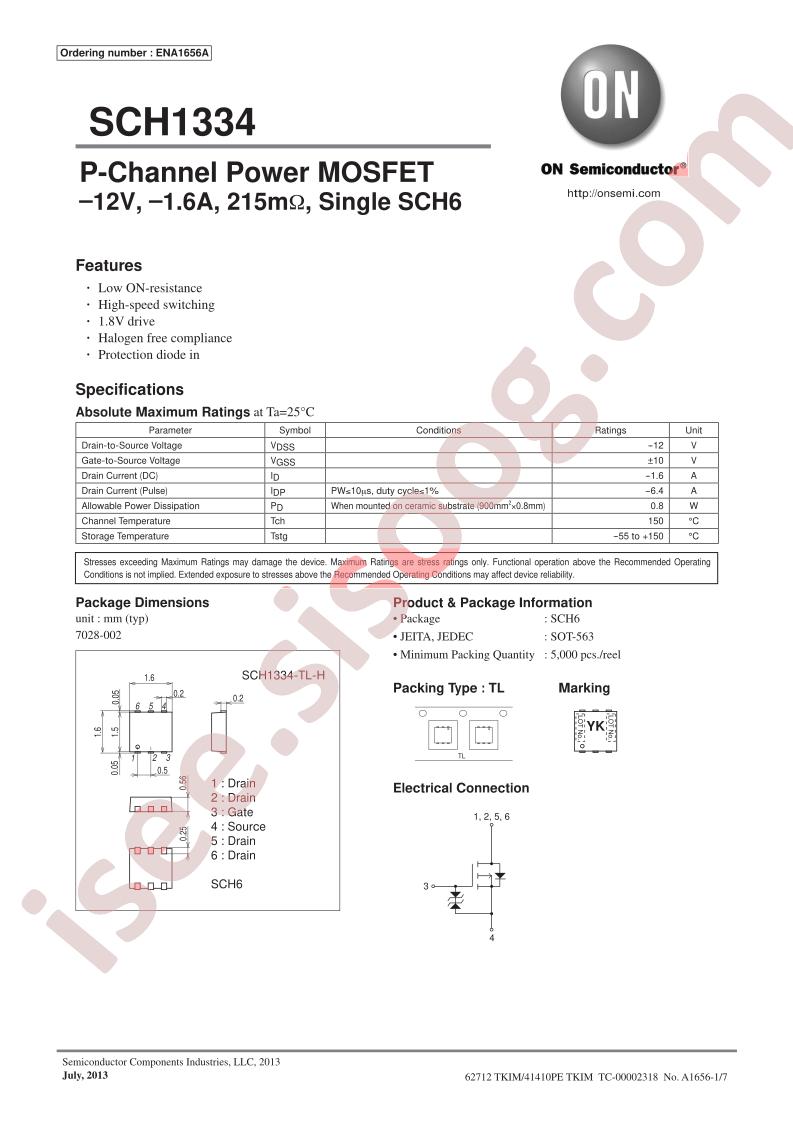

SCH1334-TL-H دیتاشیت
مشخصات دیتاشیت
|
نام دیتاشیت
|
SCH1334
|
|
حجم فایل
|
377.224
کیلوبایت
|
|
نوع فایل
|
pdf
|
|
تعداد صفحات
|
7
|
مشخصات فنی
-
Manufacturer:
ON Semiconductor
-
Series:
-
-
Packaging:
Tape & Reel (TR)
-
Part Status:
Obsolete
-
FET Type:
P-Channel
-
Technology:
MOSFET (Metal Oxide)
-
Drain to Source Voltage (Vdss):
12V
-
Current - Continuous Drain (Id) @ 25°C:
1.6A (Ta)
-
Drive Voltage (Max Rds On, Min Rds On):
1.8V, 4.5V
-
Rds On (Max) @ Id, Vgs:
215mOhm @ 800mA, 4.5V
-
Vgs(th) (Max) @ Id:
1.3V @ 1mA
-
Gate Charge (Qg) (Max) @ Vgs:
1.6nC @ 4.5V
-
Vgs (Max):
±10V
-
Input Capacitance (Ciss) (Max) @ Vds:
120pF @ 6V
-
FET Feature:
-
-
Power Dissipation (Max):
800mW (Ta)
-
Operating Temperature:
150°C (TJ)
-
Mounting Type:
Surface Mount
-
Supplier Device Package:
6-SCH
-
Package / Case:
SOT-563, SOT-666
-
Base Part Number:
SCH133
-
detail:
P-Channel 12V 1.6A (Ta) 800mW (Ta) Surface Mount 6-SCH
