FDMS3604AS دیتاشیت

مشخصات دیتاشیت

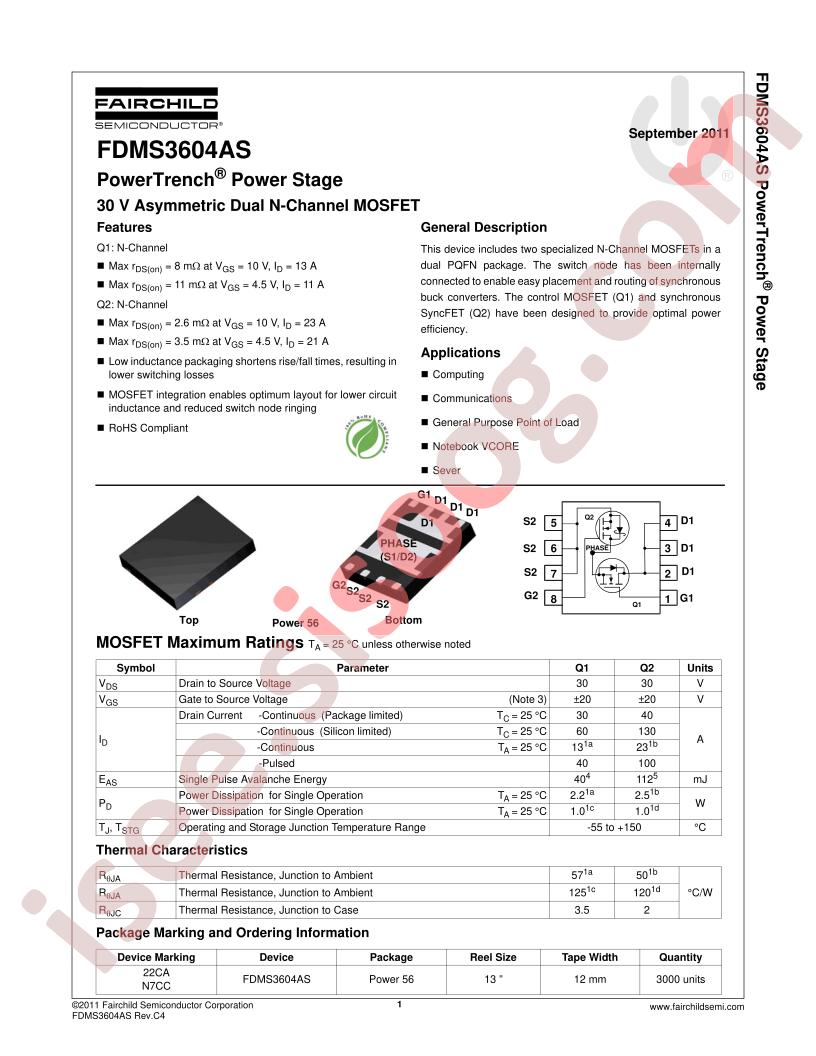

مشاهده دیتاشیت FDMS3604AS	دانلود دیتاشیت

مستندات دیگری یافت نشد!

Manufacturer: ON Semiconductor
Series: PowerTrench®
Packaging: Cut Tape (CT)
Part Status: Obsolete
FET Type: 2 N-Channel (Dual) Asymmetrical
FET Feature: Logic Level Gate
Drain to Source Voltage (Vdss): 30V
Current - Continuous Drain (Id) @ 25°C: 13A, 23A
Rds On (Max) @ Id, Vgs: 8mOhm @ 13A, 10V
Vgs(th) (Max) @ Id: 2.7V @ 250µA
Gate Charge (Qg) (Max) @ Vgs: 29nC @ 10V
Input Capacitance (Ciss) (Max) @ Vds: 1695pF @ 15V
Power - Max: 1W
Operating Temperature: -55°C ~ 150°C (TJ)
Mounting Type: Surface Mount
Package / Case: 8-PowerTDFN
Supplier Device Package: Power56
Base Part Number: FDMS36
detail: Mosfet Array 2 N-Channel (Dual) Asymmetrical 30V 13A, 23A 1W Surface Mount Power56
