دیتاشیت LA6581MC-DH

LA6581MC

مشخصات دیتاشیت

نام دیتاشیت LA6581MC
حجم فایل 61.123 کیلوبایت
نوع فایل pdf
تعداد صفحات 4

دانلود دیتاشیت LA6581MC

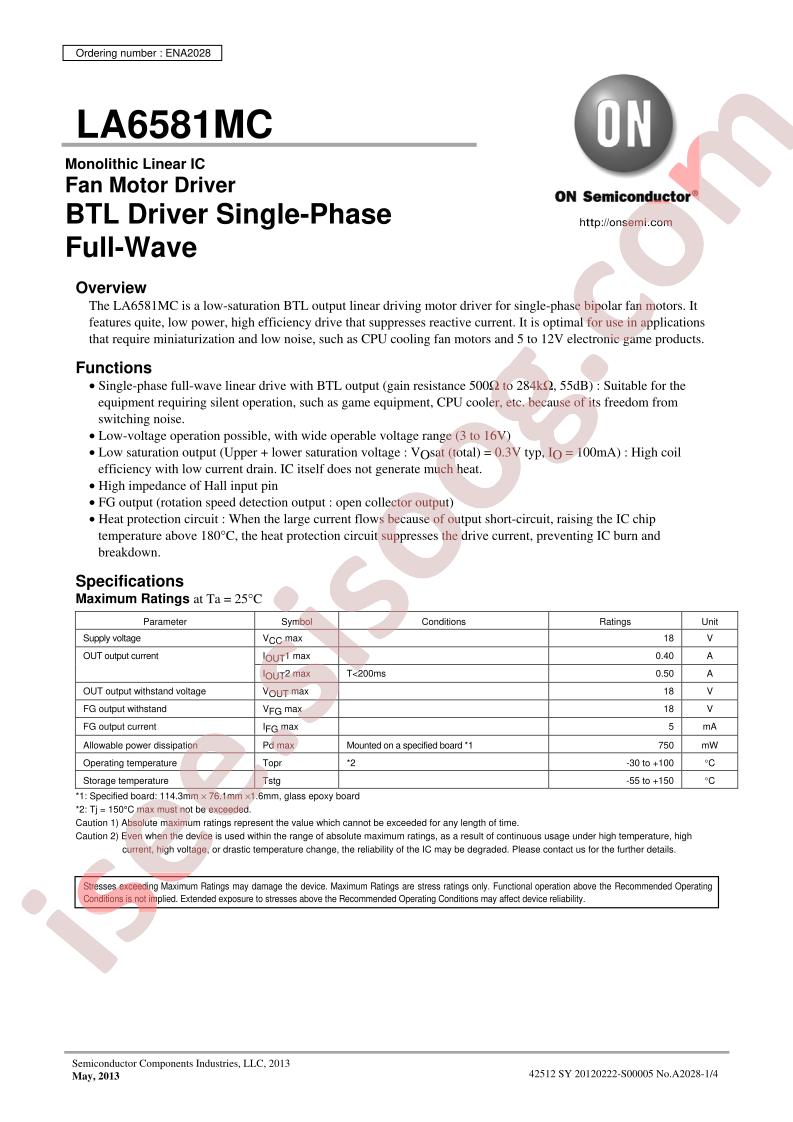

LA6581MC Datasheet

مشخصات

  • Manufacturer: ON Semiconductor
  • Series: -
  • Packaging: Tape & Reel (TR)
  • Part Status: Obsolete
  • Output Configuration: Half Bridge (2)
  • Applications: DC Motors, General Purpose
  • Interface: Logic
  • Load Type: Inductive
  • Technology: Bipolar
  • Rds On (Typ): -
  • Current - Output / Channel: 500mA
  • Current - Peak Output: -
  • Voltage - Supply: 2.2V ~ 16V
  • Voltage - Load: 2.2V ~ 16V
  • Operating Temperature: -30°C ~ 150°C (TJ)
  • Features: -
  • Fault Protection: Over Temperature
  • Mounting Type: Surface Mount
  • Package / Case: 8-SOIC (0.154", 3.90mm Width)
  • Supplier Device Package: 8-SOIC
  • Base Part Number: LA6581
  • detail: Half Bridge (2) Driver DC Motors, General Purpose Bipolar 8-SOIC
