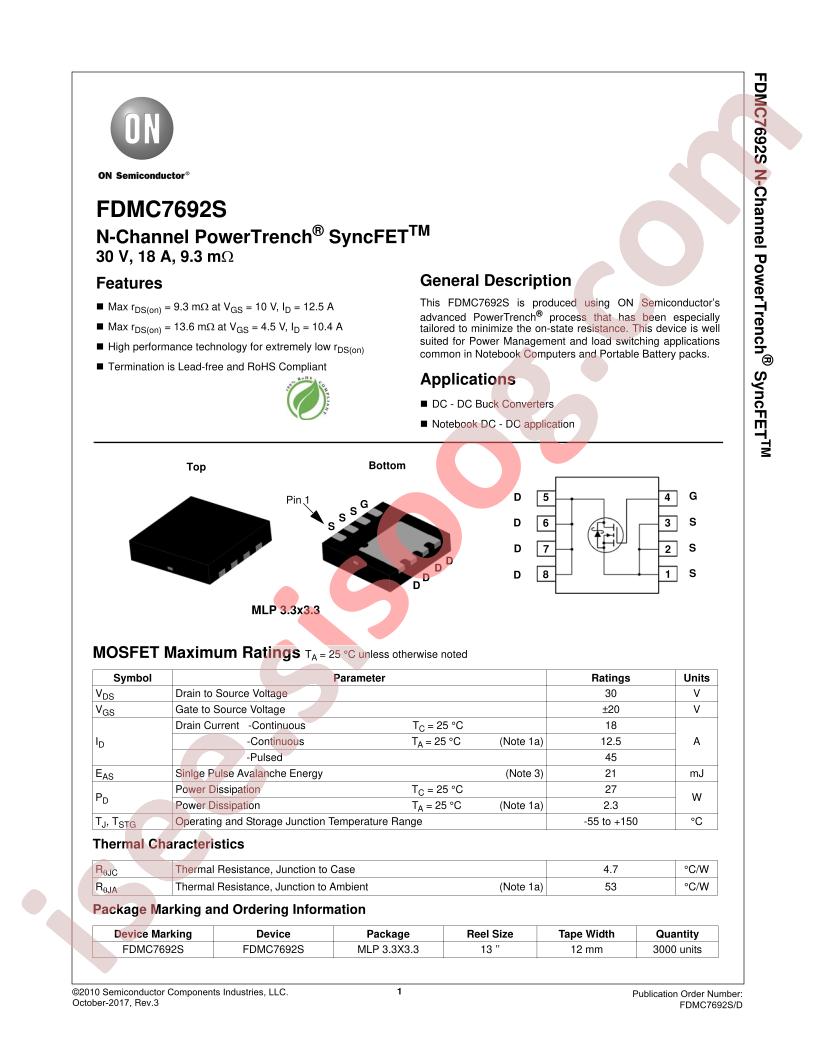

دیتاشیت FDMC7692S-F126
مشخصات دیتاشیت
| نام دیتاشیت |
FDMC7692S
|
| حجم فایل |
318.834
کیلوبایت
|
| نوع فایل |
pdf
|
| تعداد صفحات |
7
|
مشخصات
-
Manufacturer:
ON Semiconductor
-
Series:
PowerTrench®
-
Packaging:
Cut Tape (CT)
-
Part Status:
Obsolete
-
FET Type:
N-Channel
-
Technology:
MOSFET (Metal Oxide)
-
Drain to Source Voltage (Vdss):
30V
-
Current - Continuous Drain (Id) @ 25°C:
12.5A (Ta), 18A (Tc)
-
Drive Voltage (Max Rds On, Min Rds On):
4.5V, 10V
-
Rds On (Max) @ Id, Vgs:
9.3mOhm @ 12.5A, 10V
-
Vgs(th) (Max) @ Id:
3V @ 1mA
-
Gate Charge (Qg) (Max) @ Vgs:
23nC @ 10V
-
Vgs (Max):
±20V
-
Input Capacitance (Ciss) (Max) @ Vds:
1385pF @ 15V
-
FET Feature:
-
-
Power Dissipation (Max):
2.3W (Ta), 27W (Tc)
-
Operating Temperature:
-55°C ~ 150°C (TJ)
-
Mounting Type:
Surface Mount
-
Supplier Device Package:
8-MLP (3.3x3.3)
-
Package / Case:
8-PowerWDFN
-
Base Part Number:
FDMC76
-
detail:
N-Channel 30V 12.5A (Ta), 18A (Tc) 2.3W (Ta), 27W (Tc) Surface Mount 8-MLP (3.3x3.3)
