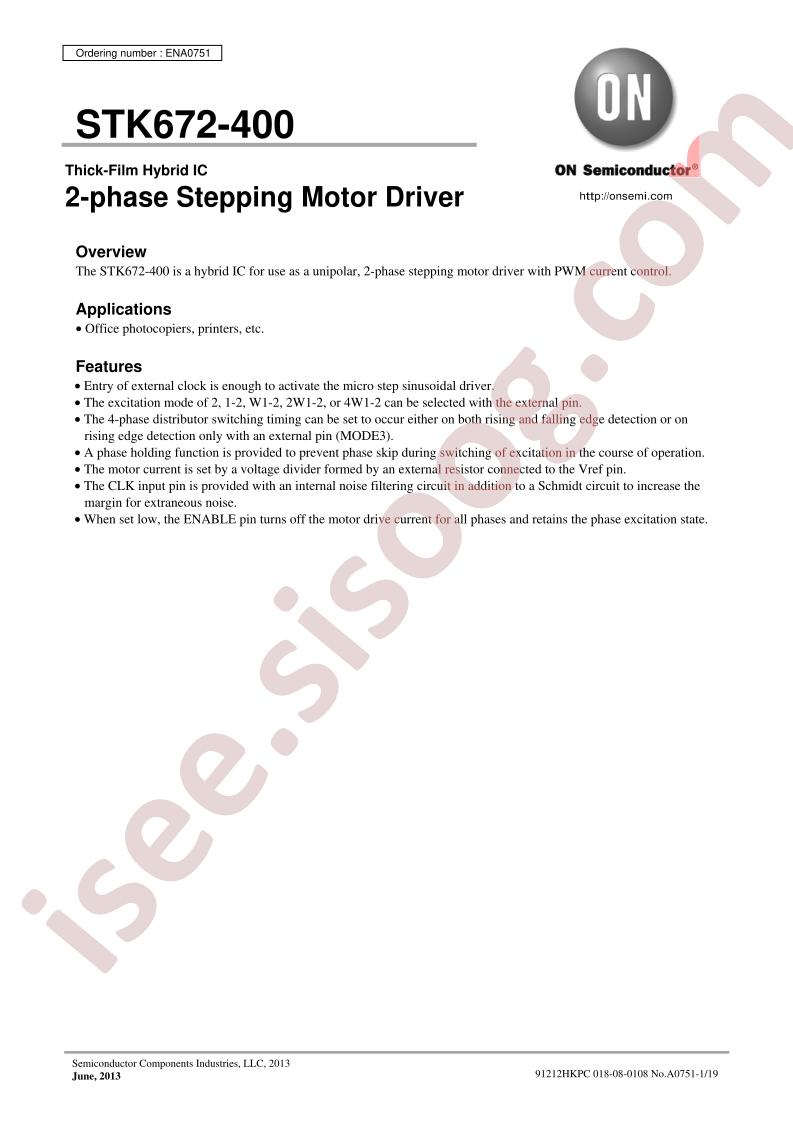

دیتاشیت STK672-400
مشخصات دیتاشیت
نام دیتاشیت |
STK672-400
|
حجم فایل |
132.077
کیلوبایت
|
نوع فایل |
pdf
|
تعداد صفحات |
19
|
مشخصات
-
Manufacturer:
ON Semiconductor
-
Series:
-
-
Packaging:
Tube
-
Part Status:
Obsolete
-
Motor Type - Stepper:
Unipolar
-
Motor Type - AC, DC:
-
-
Function:
Driver - Fully Integrated, Control and Power Stage
-
Output Configuration:
Half Bridge (2)
-
Interface:
Parallel
-
Technology:
Power MOSFET
-
Step Resolution:
1, 1/2, 1/4, 1/8, 1/16
-
Applications:
General Purpose
-
Current - Output:
2A
-
Voltage - Supply:
4.75V ~ 5.25V
-
Voltage - Load:
10V ~ 45V
-
Operating Temperature:
150°C (TJ)
-
Mounting Type:
Through Hole
-
Package / Case:
19-SSIP Formed Leads
-
Supplier Device Package:
19-SIP
-
Base Part Number:
STK672
-
detail:
Unipolar Motor Driver Power MOSFET Parallel 19-SIP
