دیتاشیت LB1876-TLM-E

LB1876

مشخصات دیتاشیت

نام دیتاشیت LB1876
حجم فایل 167.357 کیلوبایت
نوع فایل pdf
تعداد صفحات 12

دانلود دیتاشیت LB1876

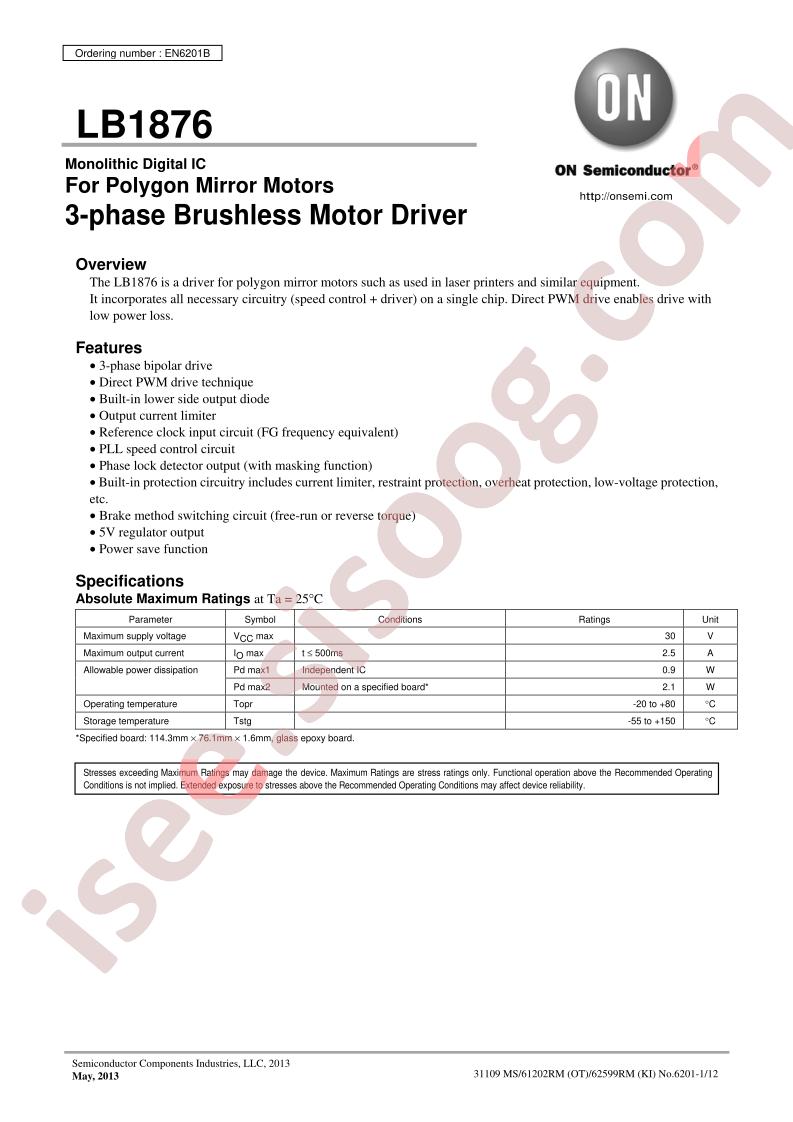

LB1876 Datasheet

مشخصات

  • Manufacturer: ON Semiconductor
  • Series: -
  • Packaging: Tape & Reel (TR)
  • Part Status: Obsolete
  • Motor Type - Stepper: -
  • Motor Type - AC, DC: Brushless DC (BLDC)
  • Function: Driver - Fully Integrated, Control and Power Stage
  • Output Configuration: Half Bridge (3)
  • Interface: Parallel, PWM
  • Technology: Bipolar
  • Step Resolution: -
  • Applications: Polygonal Mirror
  • Current - Output: 2.5A
  • Voltage - Supply: 9.5V ~ 28V
  • Voltage - Load: 9.5V ~ 28V
  • Operating Temperature: -20°C ~ 80°C (TA)
  • Mounting Type: Surface Mount
  • Package / Case: 36-SOP (0.311", 7.90mm Width) Exposed Pad + 2 Heat Tabs
  • Supplier Device Package: 36-HSOP
  • Base Part Number: LB1876
  • detail: Motor Driver Bipolar Parallel, PWM 36-HSOP
