LB1933M-TRM-E Datasheet
Datasheet specifications
| Datasheet's name | LB1933M |
|---|---|
| File size | 55.703 KB |
| File type | |
| Number of pages | 5 |
Download Datasheet LB1933M |
Download Datasheet |
|---|
Other documentations
No other documentation was found!
Technical specifications
- Manufacturer: ON Semiconductor
- Series: -
- Packaging: Tape & Reel (TR)
- Part Status: Obsolete
- Output Configuration: Half Bridge (4)
- Applications: DC Motors, General Purpose, Stepper Motors
- Interface: Logic
- Load Type: Inductive
- Technology: Bipolar
- Rds On (Typ): -
- Current - Output / Channel: 1A
- Current - Peak Output: -
- Voltage - Supply: 2.2V ~ 7.5V
- Voltage - Load: 1.8V ~ 7.5V
- Operating Temperature: -30°C ~ 75°C (TA)
- Features: -
- Fault Protection: Over Temperature
- Mounting Type: Surface Mount

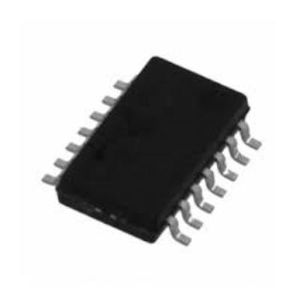

- Package / Case: 14-LSOP (0.173", 4.40mm Width)
- Supplier Device Package: 14-MFPS
- Base Part Number: LB1933
- detail: Half Bridge (4) Driver DC Motors, General Purpose, Stepper Motors Bipolar 14-MFPS
