دیتاشیت LB1940T-MPB-E

LB1940T/U

مشخصات دیتاشیت

نام دیتاشیت LB1940T/U
حجم فایل 254.042 کیلوبایت
نوع فایل pdf
تعداد صفحات 8

دانلود دیتاشیت LB1940T/U

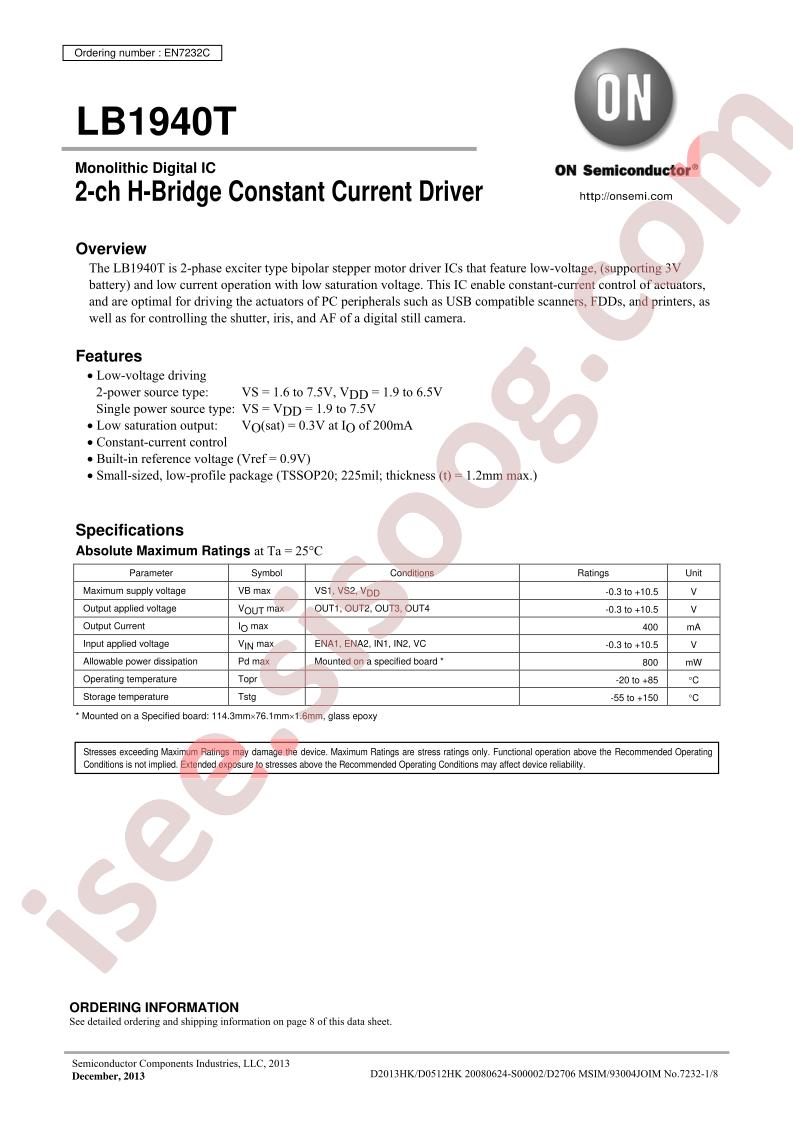

LB1940T/U Datasheet

مشخصات

  • Manufacturer: ON Semiconductor
  • Series: -
  • Packaging: Tube
  • Part Status: Obsolete
  • Output Configuration: Half Bridge (4)
  • Applications: DC Motors, General Purpose, Stepper Motors
  • Interface: Logic
  • Load Type: Inductive
  • Technology: Bipolar
  • Rds On (Typ): -
  • Current - Output / Channel: 400mA
  • Current - Peak Output: -
  • Voltage - Supply: 1.9V ~ 6.5V
  • Voltage - Load: 1.6V ~ 7.5V
  • Operating Temperature: -20°C ~ 85°C (TA)
  • Features: -
  • Fault Protection: -
  • Mounting Type: Surface Mount
  • Package / Case: 20-TSSOP (0.173", 4.40mm Width)
  • Supplier Device Package: 20-TSSOP
  • Base Part Number: LB1940
  • detail: Half Bridge (4) Driver DC Motors, General Purpose, Stepper Motors Bipolar 20-TSSOP
