دیتاشیت LB1945H-MPB-E

LB1945H

مشخصات دیتاشیت

نام دیتاشیت LB1945H
حجم فایل 81.448 کیلوبایت
نوع فایل pdf
تعداد صفحات 7

دانلود دیتاشیت LB1945H

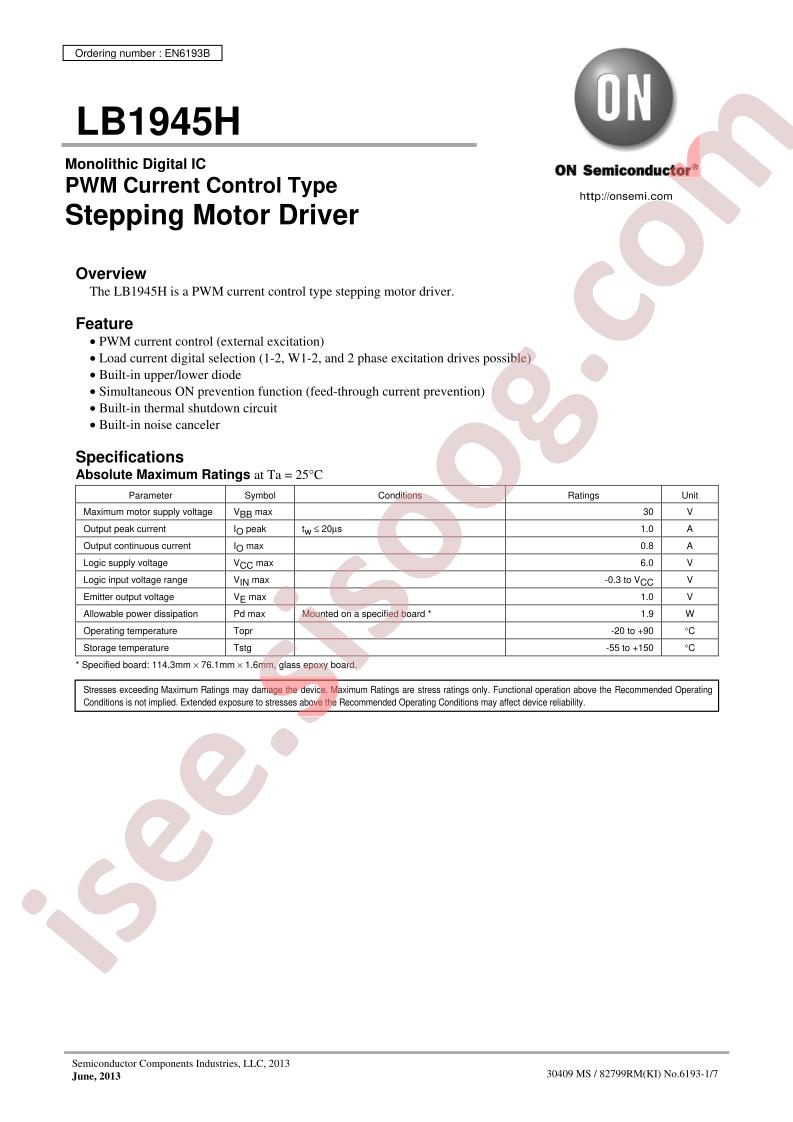

LB1945H Datasheet

مشخصات

  • Manufacturer: ON Semiconductor
  • Series: -
  • Packaging: Tube
  • Part Status: Obsolete
  • Motor Type - Stepper: Bipolar
  • Motor Type - AC, DC: -
  • Function: Driver - Fully Integrated, Control and Power Stage
  • Output Configuration: Half Bridge (4)
  • Interface: Parallel
  • Technology: Bipolar
  • Step Resolution: -
  • Applications: General Purpose
  • Current - Output: 800mA
  • Voltage - Supply: 4.75V ~ 5.25V
  • Voltage - Load: 10V ~ 28V
  • Operating Temperature: -20°C ~ 90°C (TA)
  • Mounting Type: Surface Mount
  • Package / Case: 28-SOP (0.311", 7.90mm Width) Exposed Pad + 2 Heat Tabs
  • Supplier Device Package: 28-HSOP-H
  • Base Part Number: LB1945
  • detail: Bipolar Motor Driver Bipolar Parallel 28-HSOP-H
