دیتاشیت TND523SS-TL-2H

TND523SS

مشخصات دیتاشیت

نام دیتاشیت TND523SS
حجم فایل 469.534 کیلوبایت
نوع فایل pdf
تعداد صفحات 12

دانلود دیتاشیت TND523SS

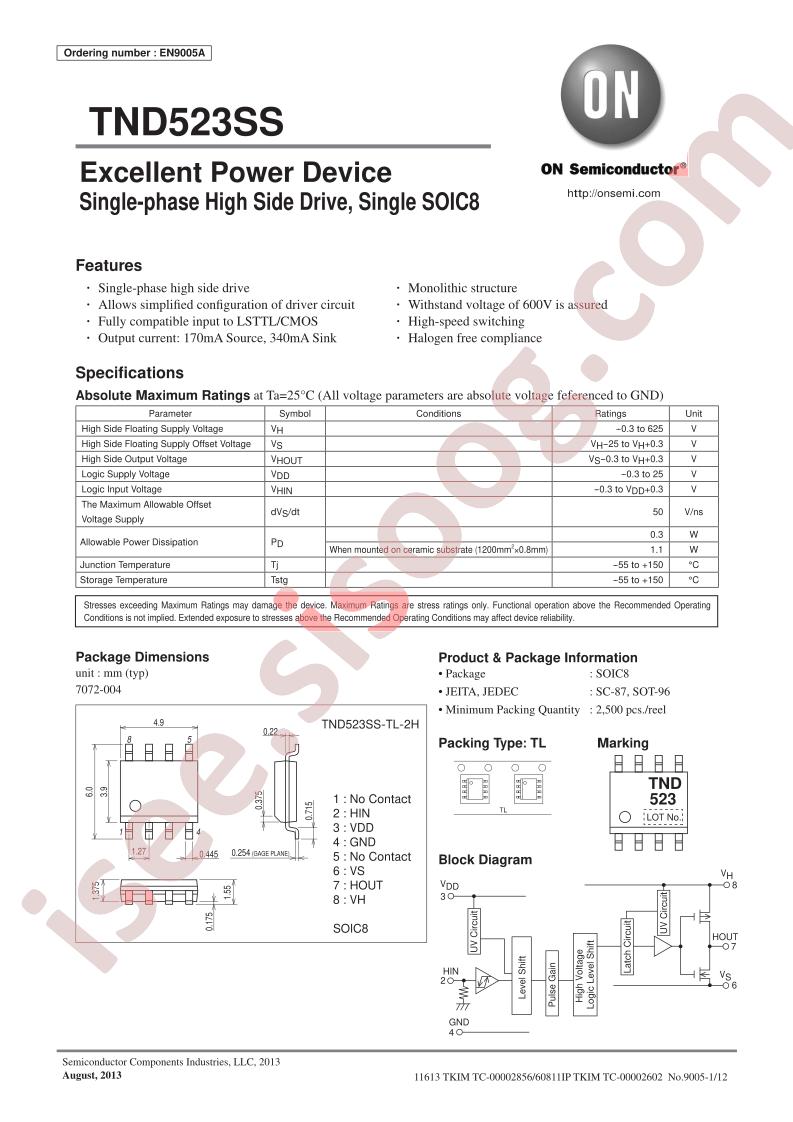

TND523SS Datasheet

مشخصات

  • Manufacturer: ON Semiconductor
  • Series: -
  • Packaging: Tape & Reel (TR)
  • Part Status: Obsolete
  • Output Configuration: Half Bridge
  • Applications: General Purpose
  • Interface: On/Off
  • Load Type: Inductive
  • Technology: Power MOSFET
  • Rds On (Typ): -
  • Current - Output / Channel: -
  • Current - Peak Output: 200mA, 400mA
  • Voltage - Supply: 10V ~ 20V
  • Voltage - Load: 600V (Max)
  • Operating Temperature: -55°C ~ 150°C (TJ)
  • Features: -
  • Fault Protection: -
  • Mounting Type: Surface Mount
  • Package / Case: 8-SOIC (0.154", 3.90mm Width)
  • Supplier Device Package: 8-SOIC
  • Base Part Number: TND523
  • detail: Half Bridge Driver General Purpose Power MOSFET 8-SOIC
