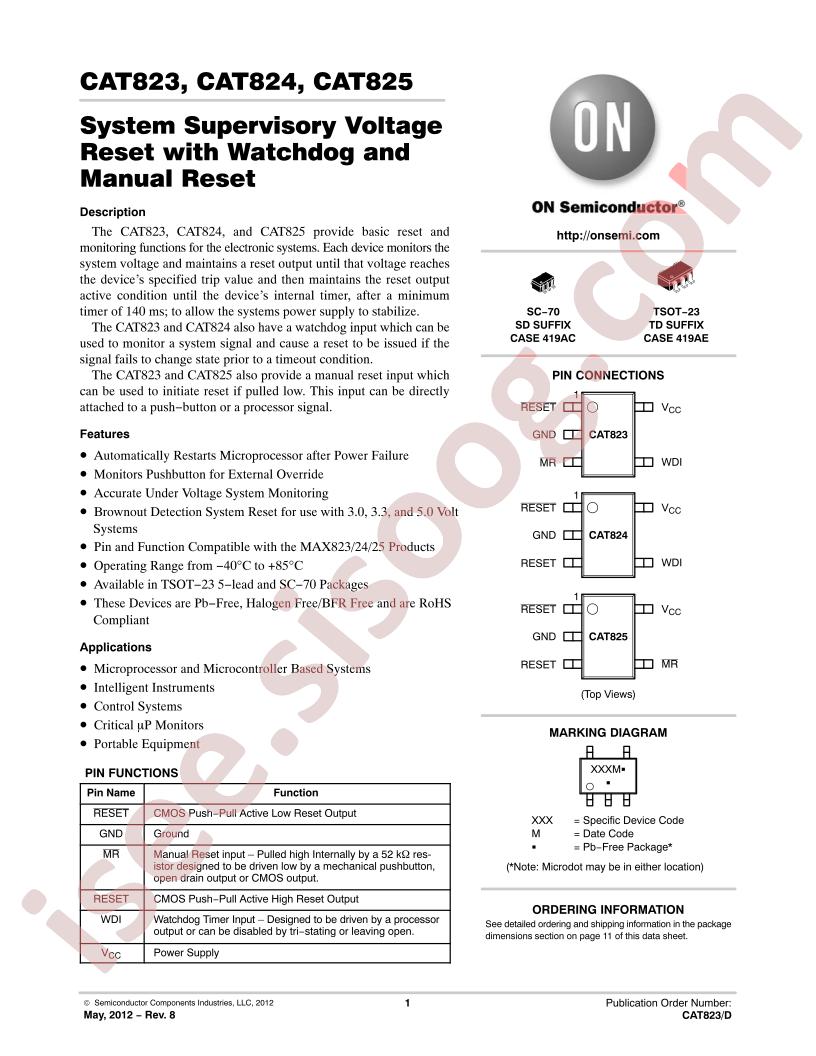

CAT823, 824, 825 Datasheet

CAT823, 824, 825

Datasheet specifications

Datasheet's name CAT823, 824, 825
File size 139.137 KB
File type pdf
Number of pages 12

Download Datasheet CAT823, 824, 825

Download Datasheet

Other documentations

CAT824MTDI-GT3 12 pages

Technical specifications

  • RoHS: true
  • Category: Power Supply Chip/Monitors & Reset Circuits
  • Datasheet: onsemi CAT823RTDI-GT3
  • Output Type: Push Pull
  • Reset Timeout: 140ms
  • Threshold Voltage: 2.63V
  • Reset Active Level: Active Low
  • Operating Temperature: -40°C~+85°C@(TA)
  • Number of Voltages Monitored: 1
  • Type of the Power Management Chip: Simple reset/Power-on reset
  • Package: TSOT-23-5
  • Manufacturer: onsemi
  • Series: -
  • Packaging: Cut Tape (CT)
  • Part Status: Discontinued at Digi-Key
  • Type: Simple Reset/Power-On Reset
  • Output: Push-Pull, Totem Pole
  • Reset: Active Low
  • Voltage - Threshold: 2.63V
  • Mounting Type: Surface Mount
  • Package / Case: SOT-23-5 Thin, TSOT-23-5
  • Supplier Device Package: TSOT-23-5
  • Base Part Number: CAT823
  • detail: Supervisor Push-Pull, Totem Pole 1 Channel TSOT-23-5
