2N7002KW دیتاشیت

2N7002KW

مشخصات دیتاشیت

نام دیتاشیت 2N7002KW
حجم فایل 73.327 کیلوبایت
نوع فایل pdf
تعداد صفحات 5

مشاهده دیتاشیت 2N7002KW

دانلود دیتاشیت

سایر مستندات

2N7002KW Datasheet 5 pages

2N7002KW 4 pages

2N7002KW 4 pages

2N7002KW 4 pages

2N7002KW 5 pages

مشخصات فنی

  • RoHS: true
  • Type: -
  • Category: Triode/MOS Tube/Transistor/MOSFETs
  • Datasheet: BORN 2N7002KW
  • Power Dissipation (Pd): -
  • Total Gate Charge (Qg@Vgs): -
  • Drain Source Voltage (Vdss): -
  • Input Capacitance (Ciss@Vds): -
  • Continuous Drain Current (Id): -
  • Gate Threshold Voltage (Vgs(th)@Id): -
  • Reverse Transfer Capacitance (Crss@Vds): -
  • Drain Source On Resistance (RDS(on)@Vgs,Id): -

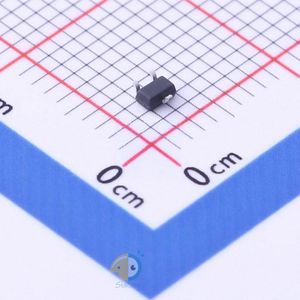

  • Package: SOT-323(SC-70)
  • Manufacturer: BORN
  • Operating Temperature: -55°C~+150°C@(Tj)
  • Series: -
  • Packaging: Cut Tape (CT)
  • Part Status: Active
  • FET Type: N-Channel
  • Technology: MOSFET (Metal Oxide)
  • Drain to Source Voltage (Vdss): 60V
  • Current - Continuous Drain (Id) @ 25°C: 310mA (Ta)
  • Drive Voltage (Max Rds On, Min Rds On): 5V, 10V
  • Rds On (Max) @ Id, Vgs: 1.6Ohm @ 500mA, 10V
  • Vgs(th) (Max) @ Id: 2.1V @ 250µA
  • Vgs (Max): ±20V
  • Input Capacitance (Ciss) (Max) @ Vds: 50pF @ 25V
  • FET Feature: -
  • Power Dissipation (Max): 350mW (Ta)
  • Mounting Type: Surface Mount
  • Supplier Device Package: SC-70 (SOT323)
  • Package / Case: SC-70, SOT-323
  • Base Part Number: 2N7002
  • detail: N-Channel 60V 310mA (Ta) 350mW (Ta) Surface Mount SC-70 (SOT323)
