دیتاشیت LV8405V-MPB-E

LV8405V

مشخصات دیتاشیت

نام دیتاشیت LV8405V
حجم فایل 91.21 کیلوبایت
نوع فایل pdf
تعداد صفحات 6

دانلود دیتاشیت LV8405V

LV8405V Datasheet

مشخصات

  • Manufacturer: ON Semiconductor
  • Series: -
  • Packaging: Tube
  • Part Status: Obsolete
  • Motor Type - Stepper: -
  • Motor Type - AC, DC: Brushed DC
  • Function: Driver - Fully Integrated, Control and Power Stage
  • Output Configuration: Half Bridge (4)
  • Interface: Parallel
  • Technology: Bi-CMOS
  • Step Resolution: -
  • Applications: General Purpose
  • Current - Output: 1.4A
  • Voltage - Supply: 2.8V ~ 5.5V
  • Voltage - Load: 1.5V ~ 15V
  • Operating Temperature: -30°C ~ 85°C (TA)
  • Mounting Type: Surface Mount

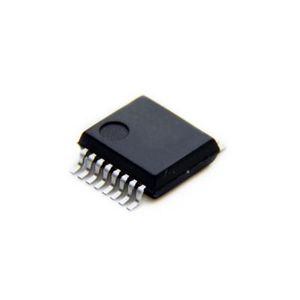

  • Package / Case: 16-LSSOP (0.173", 4.40mm Width)
  • Supplier Device Package: 16-SSOP
  • Base Part Number: LV840
  • detail: Motor Driver Bi-CMOS Parallel 16-SSOP
