دیتاشیت STK672-070-E

STK672-070-E

مشخصات دیتاشیت

نام دیتاشیت STK672-070-E
حجم فایل 180.673 کیلوبایت
نوع فایل pdf
تعداد صفحات 18

دانلود دیتاشیت STK672-070-E

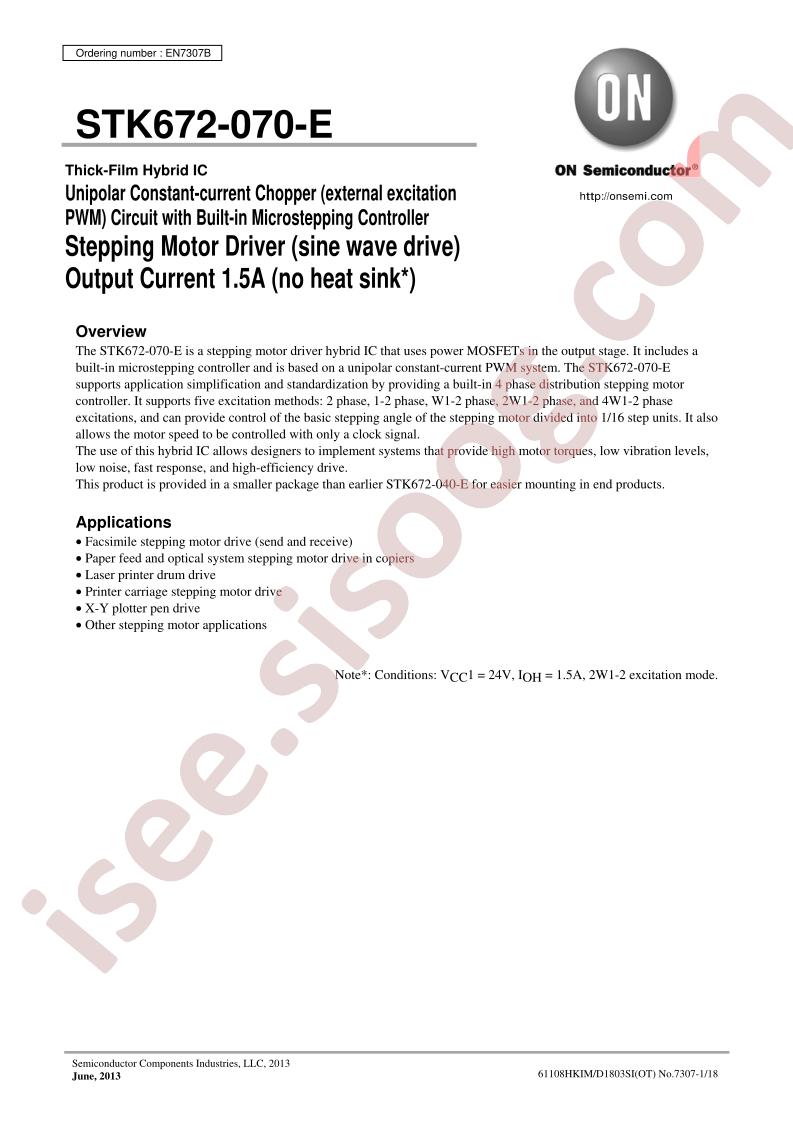

STK672-070-E Datasheet

مشخصات

  • Manufacturer: ON Semiconductor
  • Series: -
  • Packaging: Bulk
  • Part Status: Obsolete
  • Motor Type - Stepper: Unipolar
  • Motor Type - AC, DC: -
  • Function: Driver - Fully Integrated, Control and Power Stage
  • Output Configuration: Half Bridge (2)
  • Interface: Parallel
  • Technology: Power MOSFET
  • Step Resolution: 1, 1/2, 1/4, 1/8, 1/16
  • Applications: General Purpose
  • Current - Output: 1.7A
  • Voltage - Supply: 4.75V ~ 5.25V
  • Voltage - Load: 10V ~ 45V
  • Operating Temperature: 150°C (TJ)
  • Mounting Type: Through Hole
  • Package / Case: 15-SIP Formed Leads
  • Supplier Device Package: 15-SIP
  • Base Part Number: STK672
  • detail: Unipolar Motor Driver Power MOSFET Parallel 15-SIP
