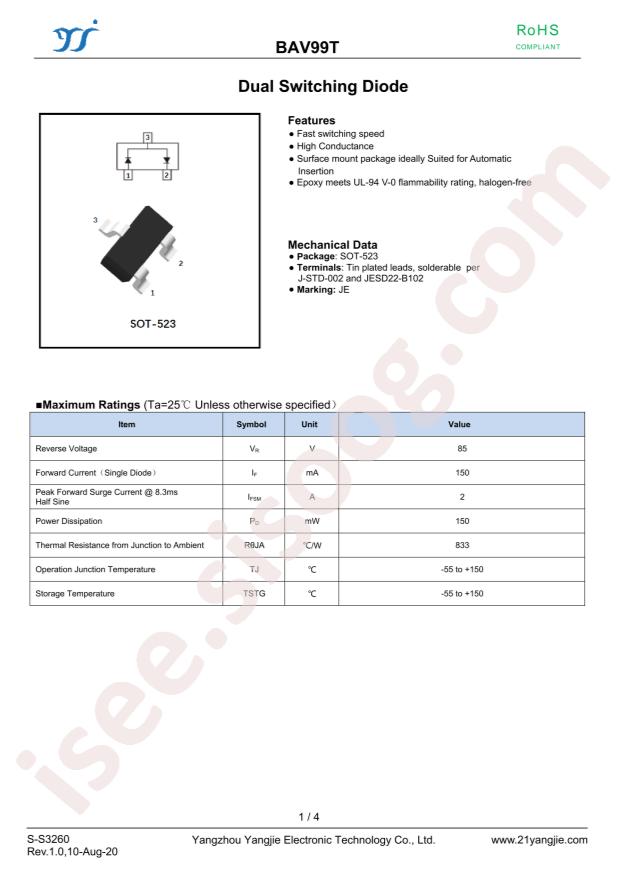

دیتاشیت BAV99T
مشخصات دیتاشیت
| نام دیتاشیت |
BAV99T
|
| حجم فایل |
75.937
کیلوبایت
|
| نوع فایل |
pdf
|
| تعداد صفحات |
3
|
مشخصات
-
RoHS:
true
-
Category:
Diodes/Switching Diode
-
Datasheet:
CBI BAV99T
-
Power Dissipation:
150mW
-
Diode Configuration:
Dual
-
Reverse Voltage (Vr):
85V
-
Operating Temperature:
+150°C@(Tj)
-
Forward Voltage (Vf@If):
1.25V@150mA
-
Reverse Leakage Current:
2uA@75V
-
Reverse Recovery Time (trr):
4ns
-
Average Rectified Current (Io):
75mA
-
Package:
SOT-523(SC-75)
-
Manufacturer:
CBI
-
Series:
-
-
Packaging:
Cut Tape (CT)
-
Part Status:
Obsolete
-
Diode Type:
Standard
-
Voltage - DC Reverse (Vr) (Max):
85V
-
Current - Average Rectified (Io) (per Diode):
75mA
-
Voltage - Forward (Vf) (Max) @ If:
1V @ 50mA
-
Speed:
Small Signal =< 200mA (Io), Any Speed
-
Current - Reverse Leakage @ Vr:
2µA @ 75V
-
Operating Temperature - Junction:
125°C (Max)
-
Mounting Type:
Surface Mount
-
Package / Case:
SOT-523
-
Supplier Device Package:
SOT-523
-
Base Part Number:
BAV99
-
detail:
Diode Array 1 Pair Series Connection Standard 85V 75mA Surface Mount SOT-523
