5LN01M-TL-H دیتاشیت

5LN01M-TL-H

مشخصات دیتاشیت

نام دیتاشیت 5LN01M-TL-H
حجم فایل 50.762 کیلوبایت
نوع فایل pdf
تعداد صفحات 6

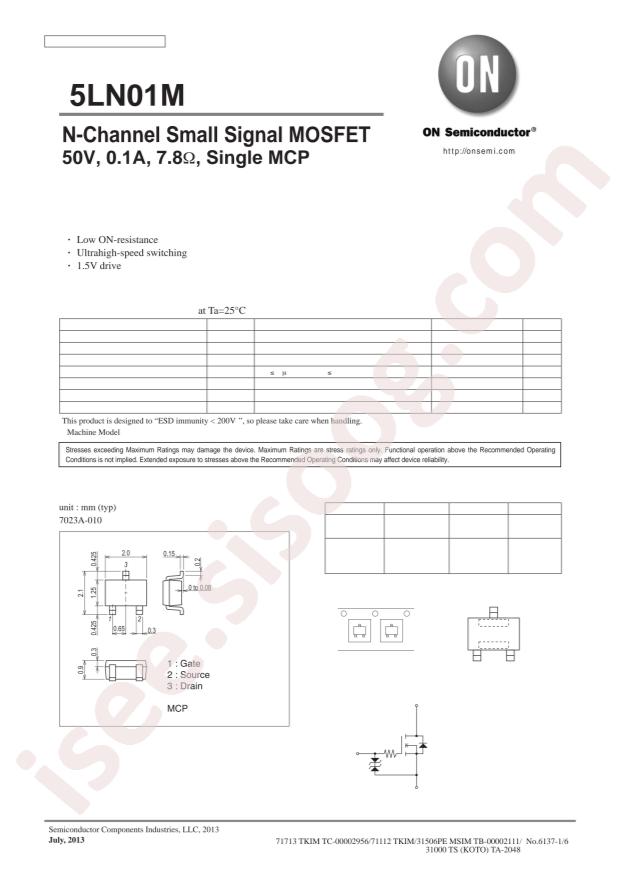

مشاهده دیتاشیت 5LN01M-TL-H

دانلود دیتاشیت

سایر مستندات

مستندات دیگری یافت نشد!

مشخصات فنی

  • RoHS: true
  • Type: N Channel
  • Category: Triode/MOS Tube/Transistor/MOSFETs
  • Datasheet: onsemi 5LN01M-TL-H
  • Power Dissipation (Pd): 150mW
  • Drain Source Voltage (Vdss): 50V
  • Continuous Drain Current (Id): 100mA
  • Gate Threshold Voltage (Vgs(th)@Id): -
  • Drain Source On Resistance (RDS(on)@Vgs,Id): 7.8Ω@4V,50mA
  • Package: SOT-323(SC-70)
  • Manufacturer: onsemi
  • Series: -
  • Packaging: Cut Tape (CT)
  • Part Status: Obsolete
  • FET Type: N-Channel
  • Technology: MOSFET (Metal Oxide)
  • Drain to Source Voltage (Vdss): 50V
  • Current - Continuous Drain (Id) @ 25°C: 100mA (Ta)
  • Drive Voltage (Max Rds On, Min Rds On): 1.5V, 4V
  • Rds On (Max) @ Id, Vgs: 7.8Ohm @ 50mA, 4V
  • Vgs(th) (Max) @ Id: -
  • Gate Charge (Qg) (Max) @ Vgs: 1.57nC @ 10V
  • Vgs (Max): ±10V
  • Input Capacitance (Ciss) (Max) @ Vds: 6.6pF @ 10V
  • FET Feature: -
  • Power Dissipation (Max): 150mW (Ta)
  • Operating Temperature: 150°C (TJ)
  • Mounting Type: Surface Mount
  • Supplier Device Package: 3-MCP
  • Package / Case: SC-70, SOT-323
  • Base Part Number: 5LN01
  • detail: N-Channel 50V 100mA (Ta) 150mW (Ta) Surface Mount 3-MCP
