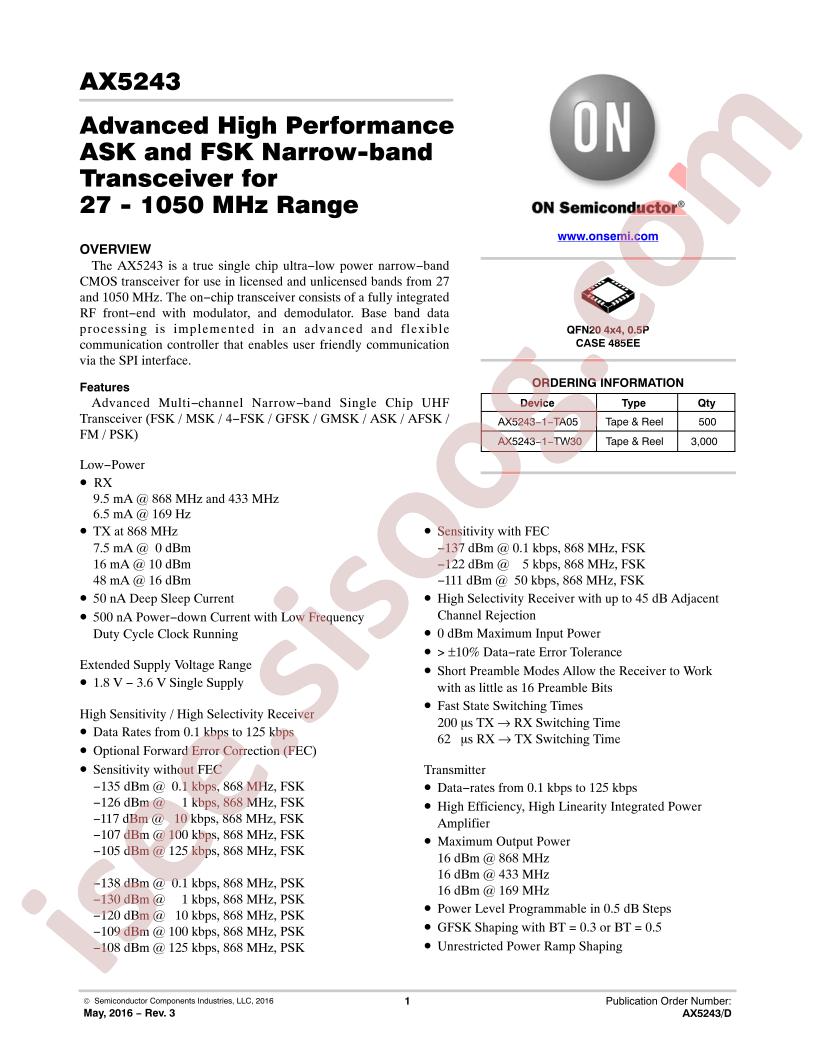

AX5243 دیتاشیت
مشخصات دیتاشیت
|
نام دیتاشیت
|
AX5243
|
|
حجم فایل
|
415.221
کیلوبایت
|
|
نوع فایل
|
pdf
|
|
تعداد صفحات
|
42
|
مشخصات فنی
-
Manufacturer:
ON Semiconductor
-
Series:
-
-
Packaging:
Cut Tape (CT)
-
Part Status:
Discontinued at Digi-Key
-
Type:
TxRx Only
-
RF Family/Standard:
General ISM < 1GHz
-
Protocol:
-
-
Modulation:
4FSK, ASK, FSK, GFSK, GMSK, MSK, PSK
-
Frequency:
27MHz ~ 1.05GHz
-
Data Rate (Max):
125kbps
-
Power - Output:
16dBm (Max)
-
Sensitivity:
-137dBm
-
Memory Size:
-
-
Serial Interfaces:
SPI
-
Voltage - Supply:
1.8V ~ 3.6V
-
Current - Receiving:
6.5mA ~ 11mA
-
Current - Transmitting:
48mA
-
Operating Temperature:
-40°C ~ 85°C
-
Mounting Type:
Surface Mount
-
Package / Case:
20-VFQFN Exposed Pad
-
Supplier Device Package:
20-QFN (4x4)
-
Base Part Number:
AX5243
-
detail:
IC RF TxRx Only General ISM < 1GHz 27MHz ~ 1.05GHz 20-VFQFN Exposed Pad
