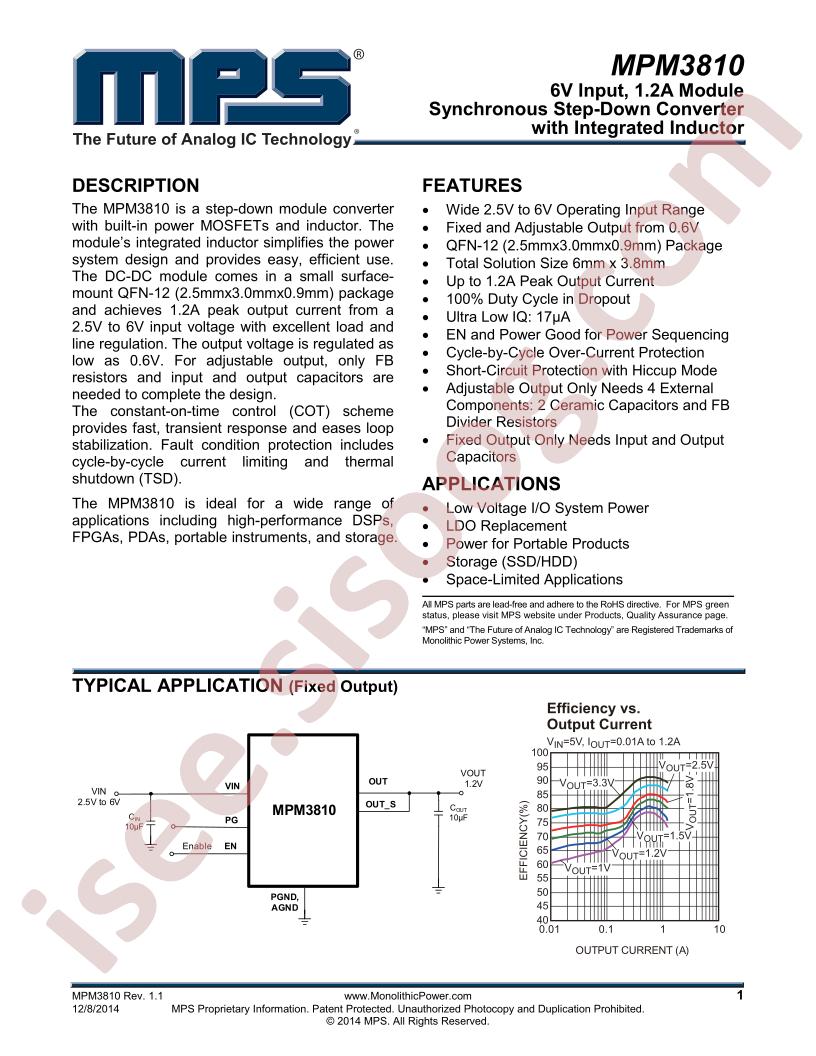

MPM3810 Datasheet Datasheet
Datasheet specifications
| Datasheet's name | MPM3810 Datasheet |
|---|---|
| File size | 911.826 KB |
| File type | |
| Number of pages | 17 |
Download Datasheet MPM3810 Datasheet |
Download Datasheet |
|---|
Other documentations
MPM3805, 10 Reliability Report 5 pages
Technical specifications
- Manufacturer: Monolithic Power Systems Inc.
- Series: -
- Packaging: Cut Tape (CT)
- Part Status: Active
- Type: Non-Isolated PoL Module
- Number of Outputs: 1
- Voltage - Input (Min): 2.5V
- Voltage - Input (Max): 6V
- Voltage - Output 1: 1.8V
- Voltage - Output 2: -
- Voltage - Output 3: -
- Current - Output (Max): 1.2A
- Applications: ITE (Commercial)
- Features: OCP, OTP, UVLO
- Operating Temperature: -40°C ~ 125°C
- Efficiency: -
- Mounting Type: Surface Mount
- Package / Case: 12-PowerVFQFN Module
- Size / Dimension: 0.12" L x 0.10" W x 0.04" H (3.0mm x 2.5mm x 0.9mm)
- Supplier Device Package: 12-QFN (3x2.5)
- detail: Non-Isolated PoL Module DC DC Converter 1 Output 1.8V 1.2A 2.5V - 6V Input
