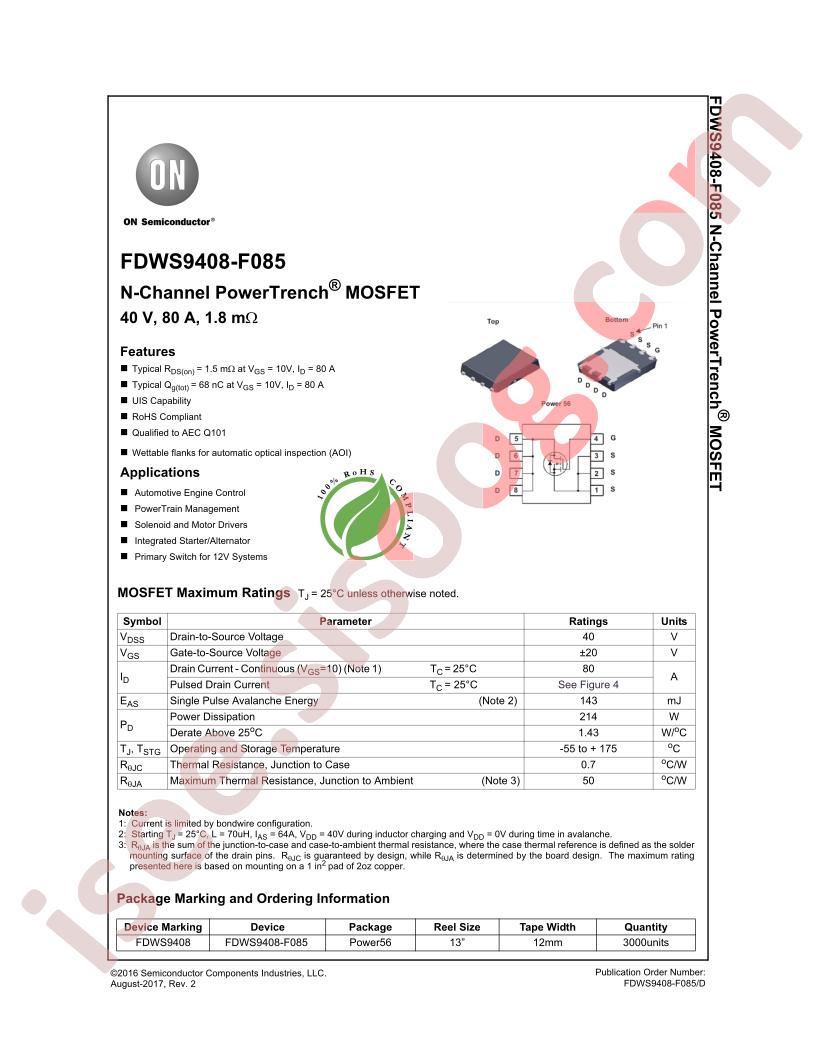

FDWS9408-F085 دیتاشیت
مشخصات دیتاشیت
|
نام دیتاشیت
|
FDWS9408_F085
|
|
حجم فایل
|
1435.242
کیلوبایت
|
|
نوع فایل
|
pdf
|
|
تعداد صفحات
|
6
|
مشخصات فنی
-
Manufacturer:
ON Semiconductor
-
Series:
-
-
Packaging:
Tape & Reel (TR)
-
Part Status:
Obsolete
-
FET Type:
N-Channel
-
Technology:
MOSFET (Metal Oxide)
-
Drain to Source Voltage (Vdss):
40V
-
Current - Continuous Drain (Id) @ 25°C:
80A (Tc)
-
Drive Voltage (Max Rds On, Min Rds On):
10V
-
Rds On (Max) @ Id, Vgs:
1.8mOhm @ 80A, 10V
-
Vgs(th) (Max) @ Id:
4V @ 250µA
-
Gate Charge (Qg) (Max) @ Vgs:
92nC @ 10V
-
Vgs (Max):
±20V
-
Input Capacitance (Ciss) (Max) @ Vds:
5150pF @ 20V
-
FET Feature:
-
-
Power Dissipation (Max):
214W (Tj)
-
Operating Temperature:
-55°C ~ 175°C (TJ)
-
Mounting Type:
Surface Mount
-
Supplier Device Package:
Power56
-
Package / Case:
8-PowerTDFN
-
Base Part Number:
FDWS9
-
detail:
N-Channel 40V 80A (Tc) 214W (Tj) Surface Mount Power56
