دیتاشیت NVMFS5C645NLWFT1G

مشخصات دیتاشیت

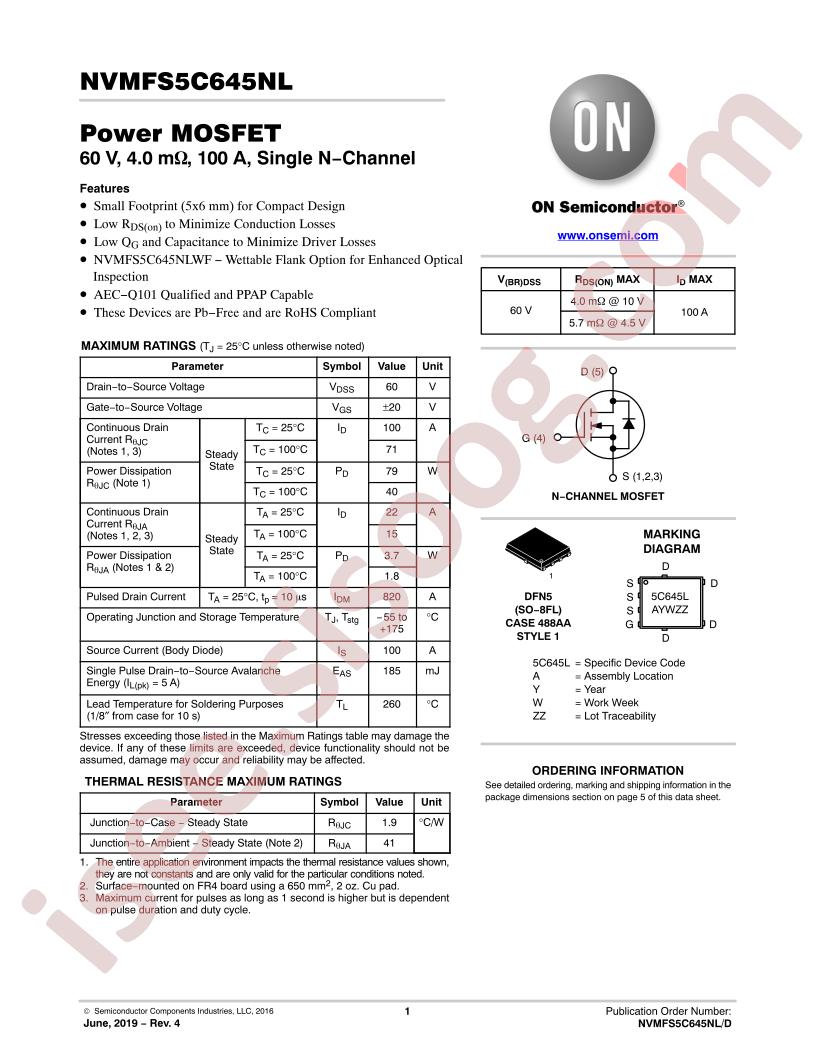

دانلود دیتاشیت NVMFS5C645NL	NVMFS5C645NL Datasheet

Manufacturer: ON Semiconductor
Series: Automotive, AEC-Q101
Packaging: Tape & Reel (TR)
Part Status: Discontinued at Digi-Key
FET Type: N-Channel
Technology: MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss): 60V
Current - Continuous Drain (Id) @ 25°C: 22A (Ta)
Drive Voltage (Max Rds On, Min Rds On): 4.5V, 10V
Rds On (Max) @ Id, Vgs: 4mOhm @ 50A, 10V
Vgs(th) (Max) @ Id: 2V @ 250µA
Gate Charge (Qg) (Max) @ Vgs: 34nC @ 10V
Vgs (Max): ±20V
Input Capacitance (Ciss) (Max) @ Vds: 2200pF @ 50V
FET Feature: -
Power Dissipation (Max): 79W (Tc)
Operating Temperature: -55°C ~ 175°C (TJ)
Mounting Type: Surface Mount, Wettable Flank
Supplier Device Package: 5-DFN (5x6) (8-SOFL)
Package / Case: 8-PowerTDFN, 5 Leads
Base Part Number: NVMFS5
detail: N-Channel 60V 22A (Ta) 79W (Tc) Surface Mount, Wettable Flank 5-DFN (5x6) (8-SOFL)
