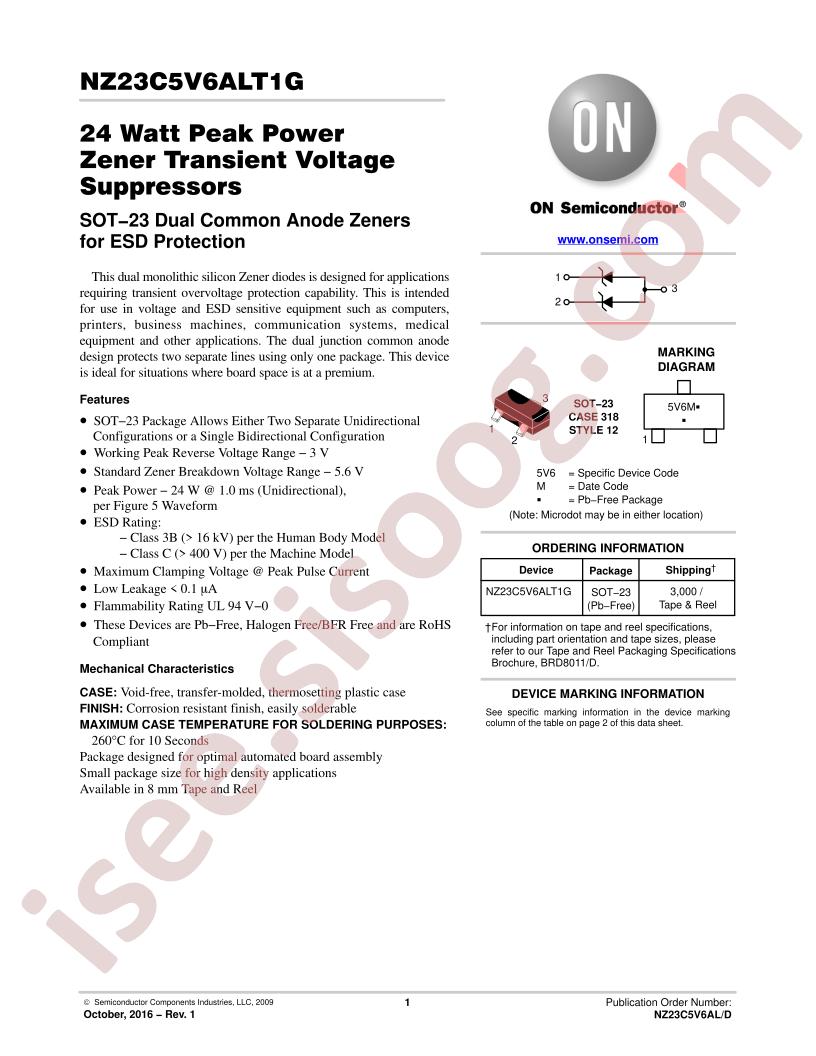

NZ23C5V6ALT1G دیتاشیت
مشخصات دیتاشیت
|
نام دیتاشیت
|
NZ23C5V6ALT1G
|
|
حجم فایل
|
100.522
کیلوبایت
|
|
نوع فایل
|
pdf
|
|
تعداد صفحات
|
6
|
مشخصات فنی
-
Manufacturer:
ON Semiconductor
-
Series:
-
-
Packaging:
Cut Tape (CT)
-
Part Status:
Obsolete
-
Type:
Zener
-
Unidirectional Channels:
2
-
Voltage - Reverse Standoff (Typ):
1V
-
Voltage - Breakdown (Min):
5.2V
-
Voltage - Clamping (Max) @ Ipp:
8V
-
Current - Peak Pulse (10/1000µs):
3A (8/20µs)
-
Power - Peak Pulse:
24W
-
Power Line Protection:
No
-
Applications:
General Purpose
-
Capacitance @ Frequency:
-
-
Operating Temperature:
-55°C ~ 150°C (TJ)
-
Mounting Type:
Surface Mount
-
Package / Case:
TO-236-3, SC-59, SOT-23-3
-
Supplier Device Package:
SOT-23-3 (TO-236)
-
Base Part Number:
NZ23C5
-
detail:
8V Clamp 3A (8/20µs) Ipp Tvs Diode Surface Mount SOT-23-3 (TO-236)
