دیتاشیت MRA4007T3G
مشخصات دیتاشیت
| نام دیتاشیت | MR(V)A400xT3 Series |
|---|---|
| حجم فایل | 57.564 کیلوبایت |
| نوع فایل | |
| تعداد صفحات | 5 |

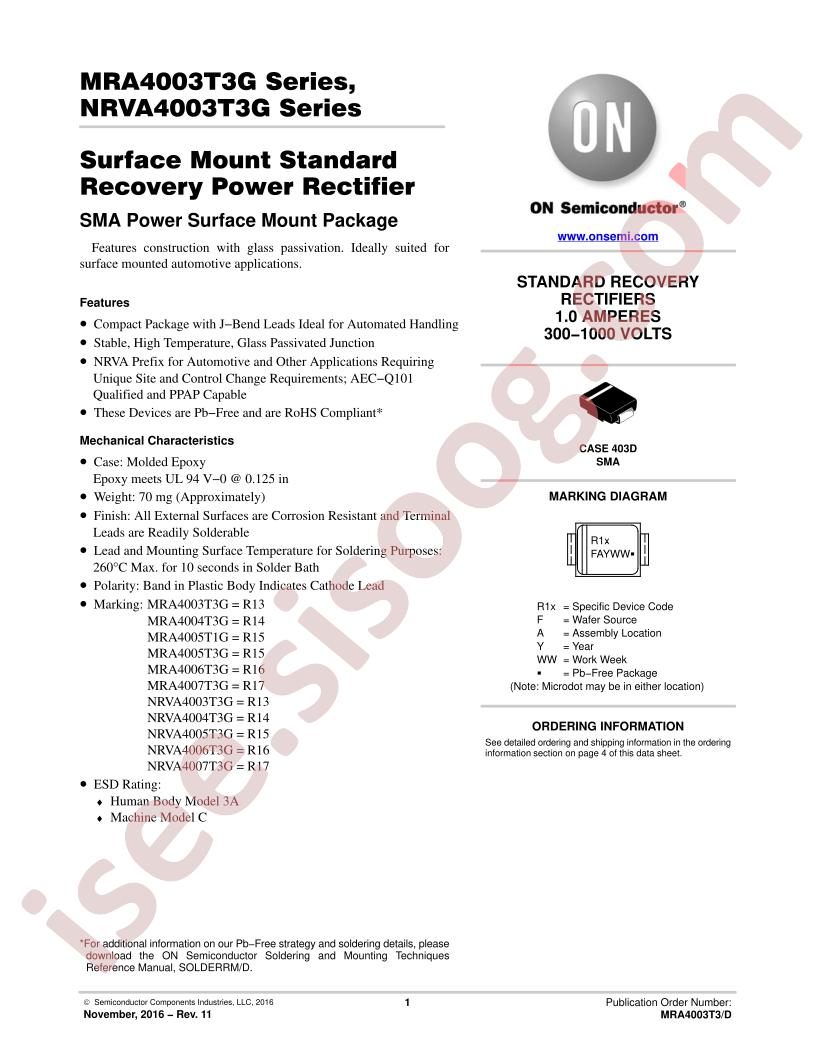

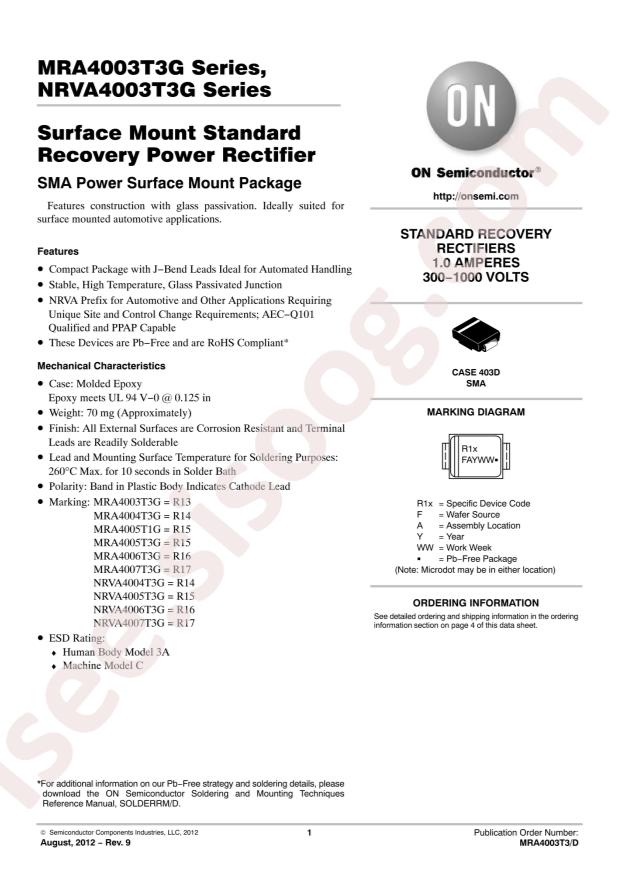

دانلود دیتاشیت MR(V)A400xT3 Series |
MR(V)A400xT3 Series Datasheet |
|---|
مشخصات
- RoHS: true
- Category: Diodes/Diodes - General Purpose
- Datasheet: onsemi MRA4007T3G
- Diode Configuration: -
- Reverse Voltage (Vr): 1kV
- Forward Voltage (Vf@If): 1.18V@2A
- Reverse Leakage Current: 10uA@1kV
- Average Rectified Current (Io): 1A
- Package: SMA(DO-214AC)
- Manufacturer: onsemi
- Series: -
- Packaging: Cut Tape (CT)
- Part Status: Active
- Diode Type: Standard
- Voltage - DC Reverse (Vr) (Max): 1000V
- Current - Average Rectified (Io): 1A
- Voltage - Forward (Vf) (Max) @ If: 1.1V @ 1A
- Speed: Standard Recovery >500ns, > 200mA (Io)
- Current - Reverse Leakage @ Vr: 10µA @ 1000V
- Capacitance @ Vr, F: -
- Mounting Type: Surface Mount
- Package / Case: DO-214AC, SMA
- Supplier Device Package: SMA
- Operating Temperature - Junction: -55°C ~ 175°C
- Base Part Number: MRA40
- detail: Diode Standard 1000V 1A Surface Mount SMA
