NSR0240P2T5G دیتاشیت
مشخصات دیتاشیت
|
نام دیتاشیت
|
NSR0240P2T5G
|
|
حجم فایل
|
77.124
کیلوبایت
|
|
نوع فایل
|
pdf
|
|
تعداد صفحات
|
4
|
مشخصات فنی
-
RoHS:
true
-
Category:
Diodes/Schottky Barrier Diodes (SBD)
-
Datasheet:
onsemi NSR0240P2T5G
-
Diode Configuration:
Single
-
Reverse Voltage (Vr):
40V
-
Forward Voltage (Vf@If):
540mV@200mA
-
Reverse Leakage Current (Ir):
5uA@40V
-
Average Rectified Current (Io):
200mA
-
Package:
SOD-923
-
Manufacturer:
onsemi
-
Series:
-
-
Packaging:
Cut Tape (CT)
-
Part Status:
Active
-
Diode Type:
Schottky
-
Voltage - DC Reverse (Vr) (Max):
40V
-
Current - Average Rectified (Io):
200mA (DC)
-
Voltage - Forward (Vf) (Max) @ If:
600mV @ 200mA
-
Speed:
Small Signal =< 200mA (Io), Any Speed
-
Current - Reverse Leakage @ Vr:
5µA @ 40V
-
Capacitance @ Vr, F:
7pF @ 1V, 1MHz
-
Mounting Type:
Surface Mount
-
Package / Case:
SOD-923
-
Supplier Device Package:
SOD-923
-
Operating Temperature - Junction:
-55°C ~ 150°C
-
Base Part Number:
NSR024
-
detail:

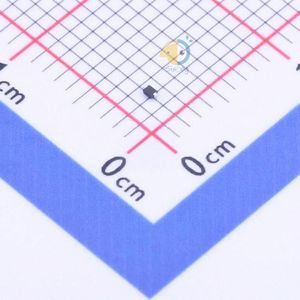

Diode Schottky 40V 200mA (DC) Surface Mount SOD-923
