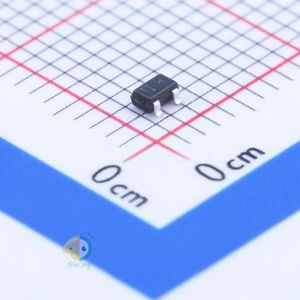

NTS4101PT1G دیتاشیت

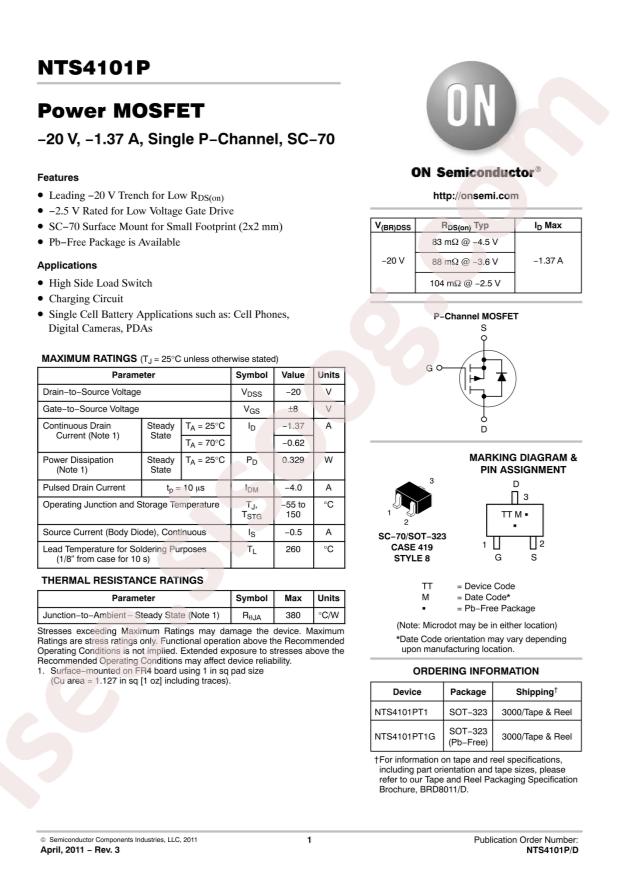

مشخصات دیتاشیت
|
نام دیتاشیت
|
NTS4101PT1G
|
|
حجم فایل
|
87.28
کیلوبایت
|
|
نوع فایل
|
pdf
|
|
تعداد صفحات
|
5
|
مشخصات فنی
-
RoHS:
true
-
Type:
P Channel
-
Category:
Triode/MOS Tube/Transistor/MOSFETs
-
Datasheet:
onsemi NTS4101PT1G
-
Operating Temperature:
-55°C~+150°C@(Tj)
-
Power Dissipation (Pd):
329mW
-
Total Gate Charge (Qg@Vgs):
9nC@4.5V
-
Drain Source Voltage (Vdss):
20V
-
Input Capacitance (Ciss@Vds):
840pF@20V
-
Continuous Drain Current (Id):
1.37A
-
Gate Threshold Voltage (Vgs(th)@Id):
1.5V@250uA
-
Drain Source On Resistance (RDS(on)@Vgs,Id):
120mΩ@4.5V,1A
-
Package:
SOT-323(SC-70)
-
Manufacturer:
onsemi
-
Series:
-
-
Packaging:
Cut Tape (CT)
-
Part Status:
Active
-
FET Type:
P-Channel
-
Technology:
MOSFET (Metal Oxide)
-
Drain to Source Voltage (Vdss):
20V
-
Current - Continuous Drain (Id) @ 25°C:
1.37A (Ta)
-
Drive Voltage (Max Rds On, Min Rds On):
2.5V, 4.5V
-
Rds On (Max) @ Id, Vgs:
120mOhm @ 1A, 4.5V
-
Vgs(th) (Max) @ Id:
1.5V @ 250µA
-
Gate Charge (Qg) (Max) @ Vgs:
9nC @ 4.5V
-
Vgs (Max):
±8V
-
Input Capacitance (Ciss) (Max) @ Vds:
840pF @ 20V
-
FET Feature:
-
-
Power Dissipation (Max):
329mW (Ta)
-
Mounting Type:
Surface Mount
-
Supplier Device Package:
SC-70-3 (SOT323)
-
Package / Case:
SC-70, SOT-323
-
Base Part Number:
NTS410
-
detail:
P-Channel 20V 1.37A (Ta) 329mW (Ta) Surface Mount SC-70-3 (SOT323)
