دیتاشیت MP2303ADN-LF-Z
مشخصات دیتاشیت
| نام دیتاشیت | MP2303A Datasheet |
|---|---|
| حجم فایل | 833.771 کیلوبایت |
| نوع فایل | |
| تعداد صفحات | 15 |

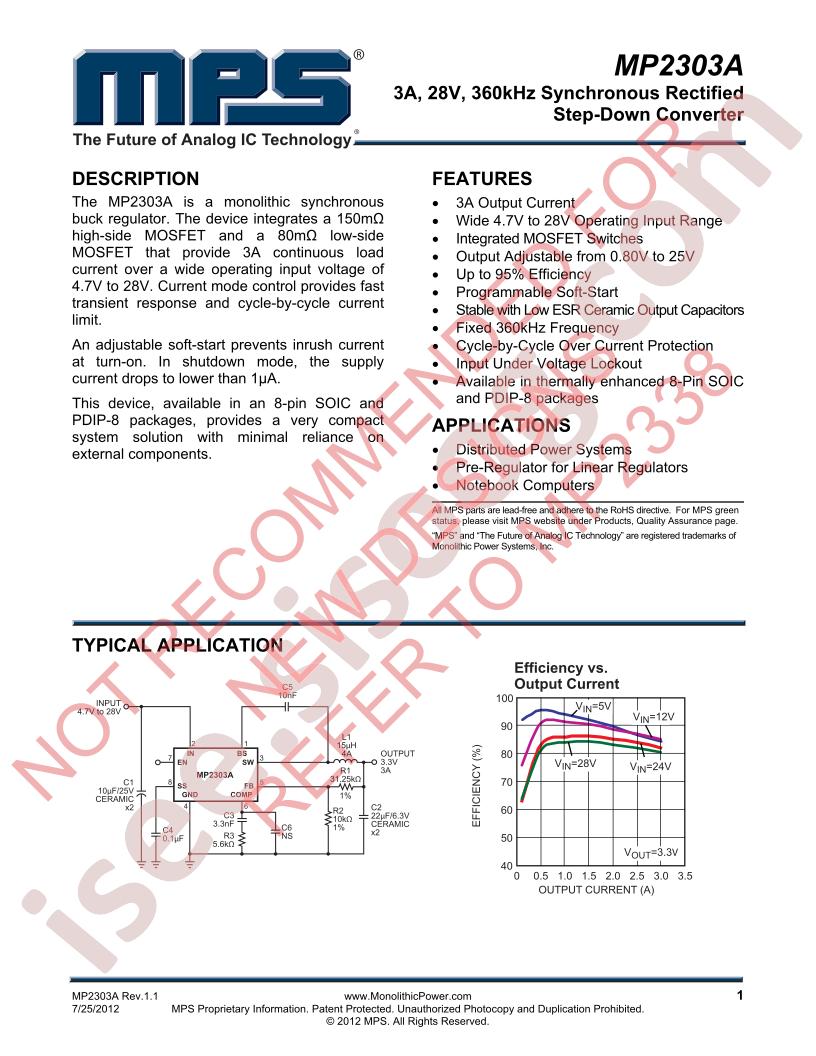

دانلود دیتاشیت MP2303A Datasheet |
MP2303A Datasheet Datasheet |
|---|
مشخصات
- Manufacturer: Monolithic Power Systems Inc.
- Series: -
- Packaging: Cut Tape (CT)
- Part Status: Not For New Designs
- Function: Step-Down
- Output Configuration: Positive
- Topology: Buck
- Output Type: Adjustable
- Number of Outputs: 1
- Voltage - Input (Min): 4.7V
- Voltage - Input (Max): 28V
- Voltage - Output (Min/Fixed): 0.8V
- Voltage - Output (Max): 25V
- Current - Output: 3A
- Frequency - Switching: 360kHz
- Synchronous Rectifier: Yes
- Operating Temperature: -40°C ~ 85°C (TA)
- Mounting Type: Surface Mount
- Package / Case: 8-SOIC (0.154", 3.90mm Width) Exposed Pad
- Supplier Device Package: 8-SOICE
- detail: Buck Switching Regulator IC Positive Adjustable 0.8V 1 Output 3A 8-SOIC (0.154", 3.90mm Width) Exposed Pad
