دیتاشیت MP2560DN-LF-Z
مشخصات دیتاشیت
| نام دیتاشیت | MP2560 Datasheet |
|---|---|
| حجم فایل | 439.091 کیلوبایت |
| نوع فایل | |
| تعداد صفحات | 19 |

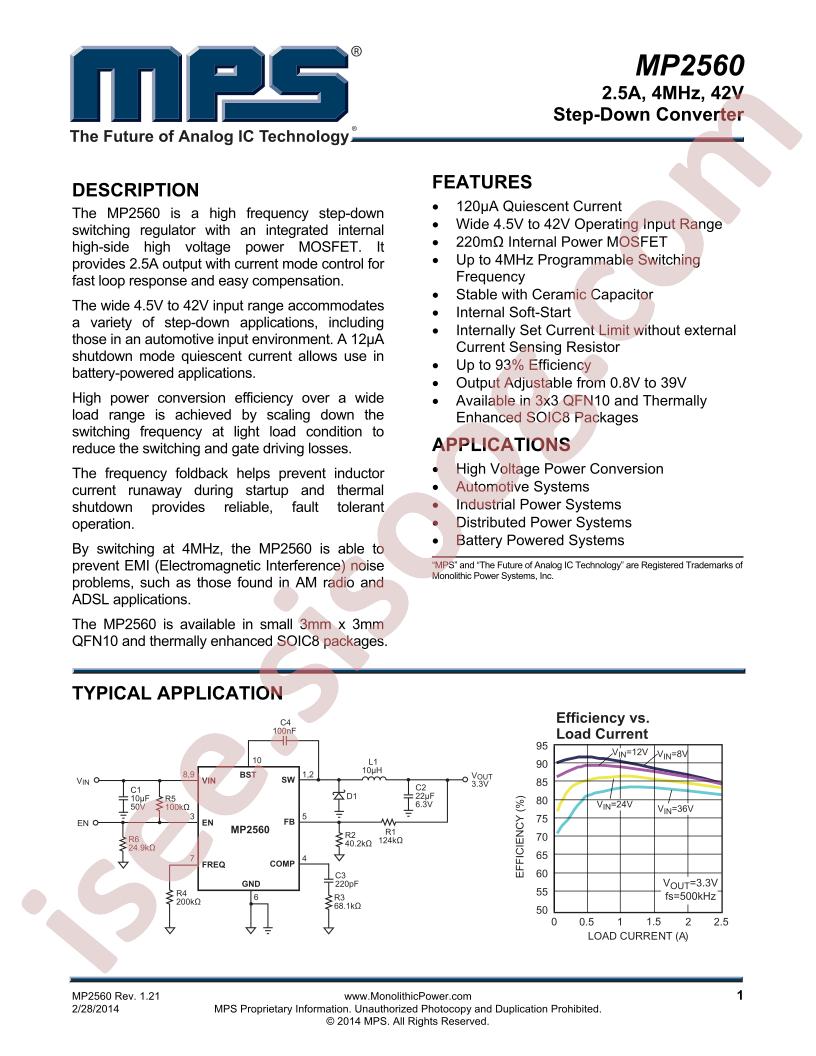

دانلود دیتاشیت MP2560 Datasheet |
MP2560 Datasheet Datasheet |
|---|
مشخصات
- Manufacturer: Monolithic Power Systems Inc.
- Series: -
- Packaging: Cut Tape (CT)
- Part Status: Active
- Function: Step-Down
- Output Configuration: Positive
- Topology: Buck
- Output Type: Adjustable
- Number of Outputs: 1
- Voltage - Input (Min): 4.5V
- Voltage - Input (Max): 42V
- Voltage - Output (Min/Fixed): 0.8V
- Voltage - Output (Max): 39V
- Current - Output: 2.5A
- Frequency - Switching: Up to 4MHz
- Synchronous Rectifier: No
- Operating Temperature: -40°C ~ 85°C (TA)
- Mounting Type: Surface Mount
- Package / Case: 8-SOIC (0.154", 3.90mm Width) Exposed Pad
- Supplier Device Package: 8-SOICE
- detail: Buck Switching Regulator IC Positive Adjustable 0.8V 1 Output 2.5A 8-SOIC (0.154", 3.90mm Width) Exposed Pad
