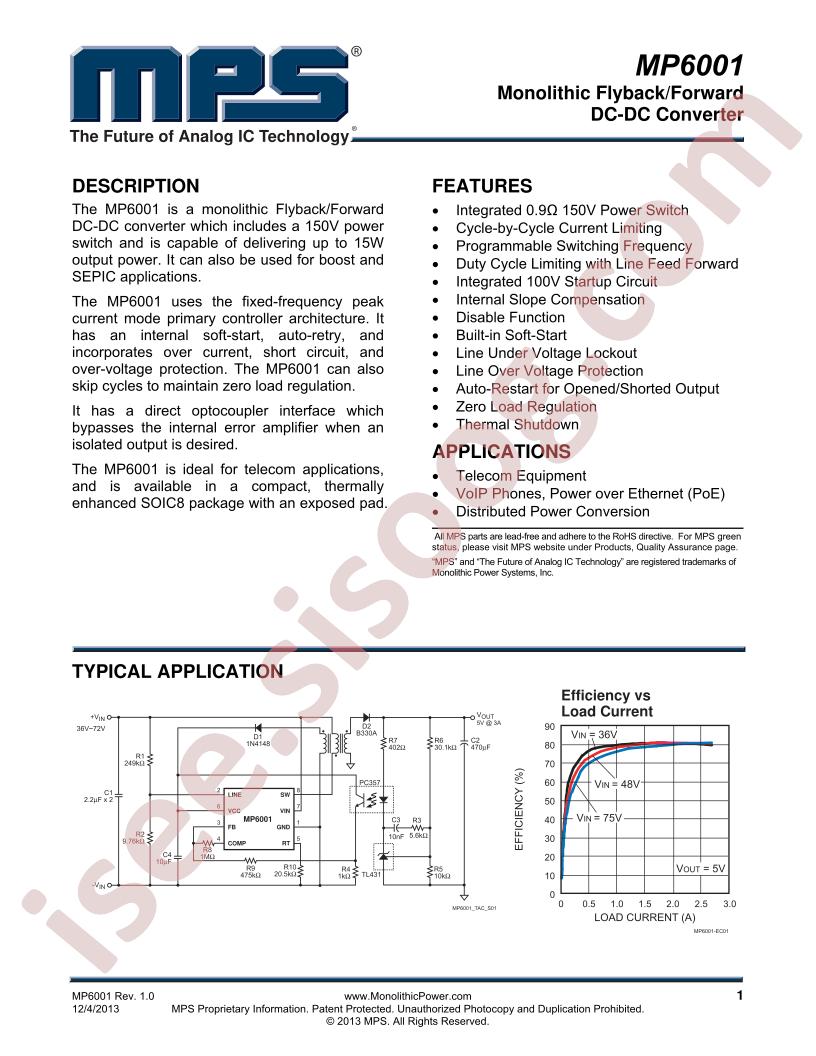

- MP6001 Datasheet
MP6001DN-LF-Z Datasheet
Datasheet specifications
| Datasheet's name | MP6001 Datasheet |
|---|---|
| File size | 502.724 KB |
| File type | |
| Number of pages | 13 |
Download Datasheet MP6001 Datasheet |
Download Datasheet |
|---|
Other documentations
No other documentation was found!
Technical specifications
- Manufacturer: Monolithic Power Systems Inc.
- Series: -
- Packaging: Cut Tape (CT)
- Part Status: Discontinued at Digi-Key
- Function: Step-Up, Step-Up/Step-Down
- Output Configuration: Positive or Negative, Isolation Capable
- Topology: Boost, Flyback, Forward Converter, SEPIC
- Output Type: Adjustable
- Number of Outputs: 1
- Voltage - Input (Min): 10V
- Voltage - Input (Max): 100V
- Voltage - Output (Min/Fixed): -0.5V
- Voltage - Output (Max): 150V
- Current - Output: 2A (Switch)
- Frequency - Switching: 200kHz ~ 500kHz
- Synchronous Rectifier: No
- Operating Temperature: -40°C ~ 85°C (TA)
- Mounting Type: Surface Mount
- Package / Case: 8-SOIC (0.154", 3.90mm Width) Exposed Pad
- Supplier Device Package: 8-SOICE
- detail: Boost, Flyback, Forward Converter, SEPIC Switching Regulator IC Positive or Negative, Isolation Capable Adjustable -0.5V 1 Output 2A (Switch) 8-SOIC (0.154", 3.90mm Width) Exposed Pad
