دیتاشیت MP20043DGT-D-LF-Z

MP20043 Datasheet

مشخصات دیتاشیت

نام دیتاشیت MP20043 Datasheet
حجم فایل 823.474 کیلوبایت
نوع فایل pdf
تعداد صفحات 13

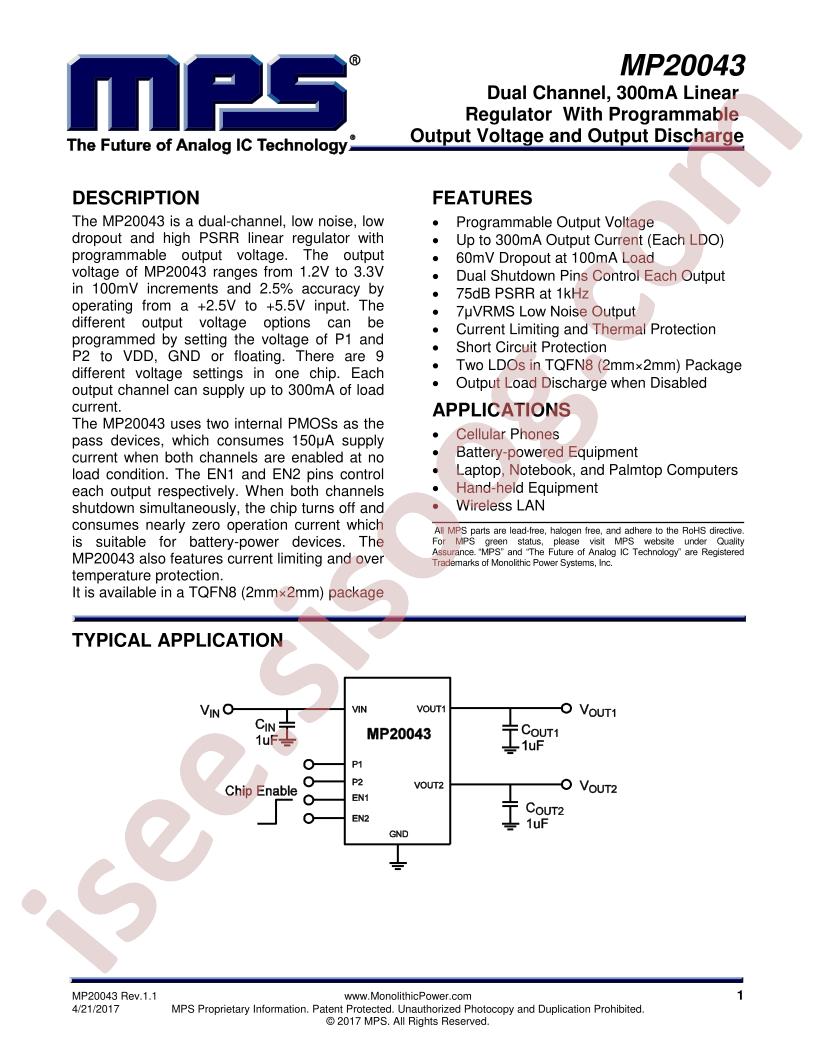

دانلود دیتاشیت MP20043 Datasheet

MP20043 Datasheet Datasheet

مشخصات

  • Manufacturer: Monolithic Power Systems Inc.
  • Series: -
  • Packaging: Tape & Reel (TR)
  • Part Status: Not For New Designs
  • Output Configuration: Positive
  • Output Type: Programmable
  • Number of Regulators: 2
  • Voltage - Input (Max): 5.5V
  • Voltage - Output (Min/Fixed): 1.5V, 2.6V
  • Voltage - Output (Max): 2.9V, 3.3V
  • Voltage Dropout (Max): 0.28V @ 300mA, 0.28V @ 300mA
  • Current - Output: 300mA, 300mA
  • Current - Quiescent (Iq): 90µA
  • Current - Supply (Max): 150µA
  • PSRR: 75dB (100Hz ~ 1kHz)
  • Control Features: Enable
  • Protection Features: Over Current, Over Temperature, Short Circuit
  • Operating Temperature: -40°C ~ 125°C
  • Mounting Type: Surface Mount
  • Package / Case: 8-VFDFN Exposed Pad
  • Supplier Device Package: 8-TQFN (2x2)
  • detail: Linear Voltage Regulator IC 2 Output 300mA, 300mA 8-TQFN (2x2)
