دیتاشیت MPQ8039GN-AEC1-Z

MPQ8039 Datasheet

مشخصات دیتاشیت

نام دیتاشیت MPQ8039 Datasheet
حجم فایل 495.126 کیلوبایت
نوع فایل pdf
تعداد صفحات 11

دانلود دیتاشیت MPQ8039 Datasheet

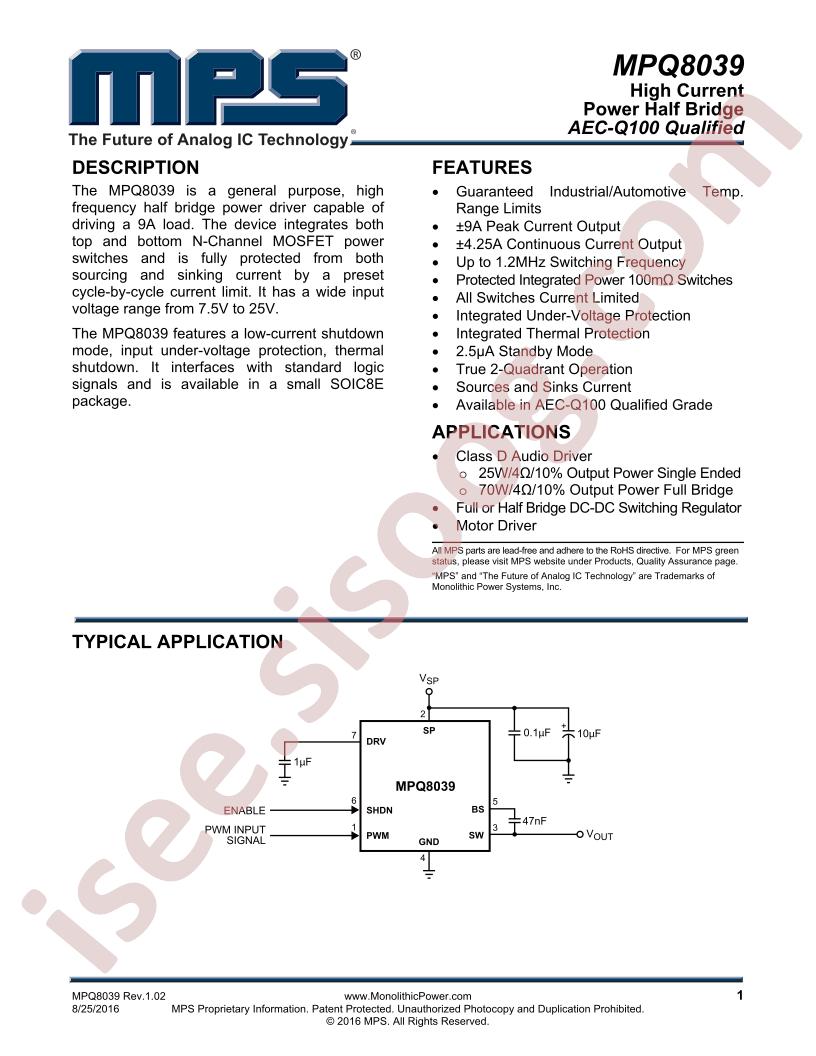

MPQ8039 Datasheet Datasheet

مشخصات

  • Manufacturer: Monolithic Power Systems Inc.
  • Series: Automotive, AEC-Q100
  • Packaging: Tube
  • Part Status: Active
  • Output Configuration: Half Bridge
  • Applications: General Purpose
  • Interface: PWM
  • Load Type: Inductive
  • Technology: Power MOSFET
  • Rds On (Typ): 100mOhm
  • Current - Output / Channel: 4.25A
  • Current - Peak Output: 9A
  • Voltage - Supply: 7.5V ~ 24V
  • Voltage - Load: 7.5V ~ 24V
  • Operating Temperature: -40°C ~ 125°C (TJ)
  • Features: -
  • Fault Protection: Current Limiting, Over Temperature, UVLO
  • Mounting Type: Surface Mount
  • Package / Case: 8-SOIC (0.154", 3.90mm Width) Exposed Pad
  • Supplier Device Package: 8-SOIC-EP
  • detail: Half Bridge Driver General Purpose Power MOSFET 8-SOIC-EP
