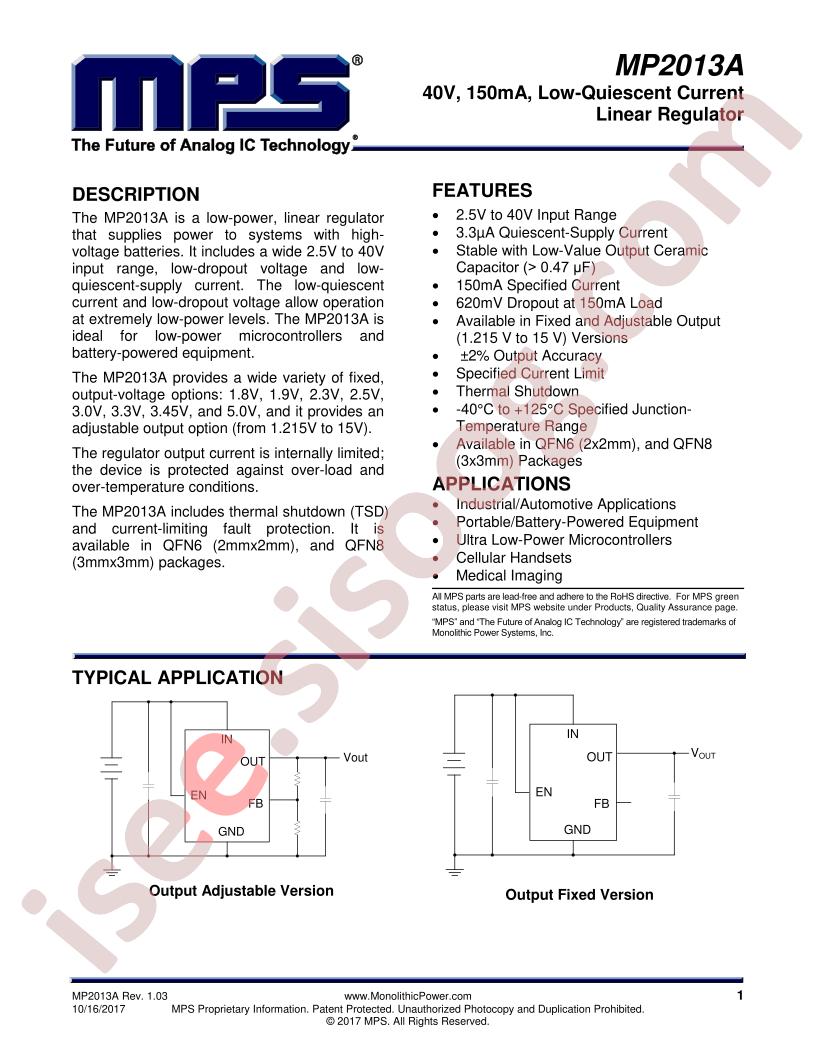

MP2013AGQ-25-P Datasheet
Datasheet specifications
| Datasheet's name | MP2013A |
|---|---|
| File size | 796.837 KB |
| File type | |
| Number of pages | 19 |
Download Datasheet MP2013A |
Download Datasheet |
|---|
Other documentations
No other documentation was found!
Technical specifications
- Manufacturer: Monolithic Power Systems Inc.
- Series: -
- Packaging: Tape & Reel (TR)
- Part Status: Active
- Output Configuration: Positive
- Output Type: Fixed
- Number of Regulators: 1
- Voltage - Input (Max): 40V
- Voltage - Output (Min/Fixed): 2.5V
- Voltage - Output (Max): -
- Voltage Dropout (Max): 0.9V @ 150mA
- Current - Output: 150mA
- Current - Quiescent (Iq): 10µA
- Current - Supply (Max): 50µA
- PSRR: 58dB ~ 41dB (100Hz ~ 1kHz)
- Control Features: Enable
- Protection Features: Over Current, Over Temperature
- Operating Temperature: -40°C ~ 125°C (TJ)
- Mounting Type: Surface Mount
- Package / Case: 8-VDFN Exposed Pad
- Supplier Device Package: 8-QFN (3x3)
- detail: Linear Voltage Regulator IC 1 Output 150mA 8-QFN (3x3)
