IXFP90N20X3 دیتاشیت

IXFP90N20X3

مشخصات دیتاشیت

نام دیتاشیت IXFP90N20X3
حجم فایل 77.732 کیلوبایت
نوع فایل pdf
تعداد صفحات 6

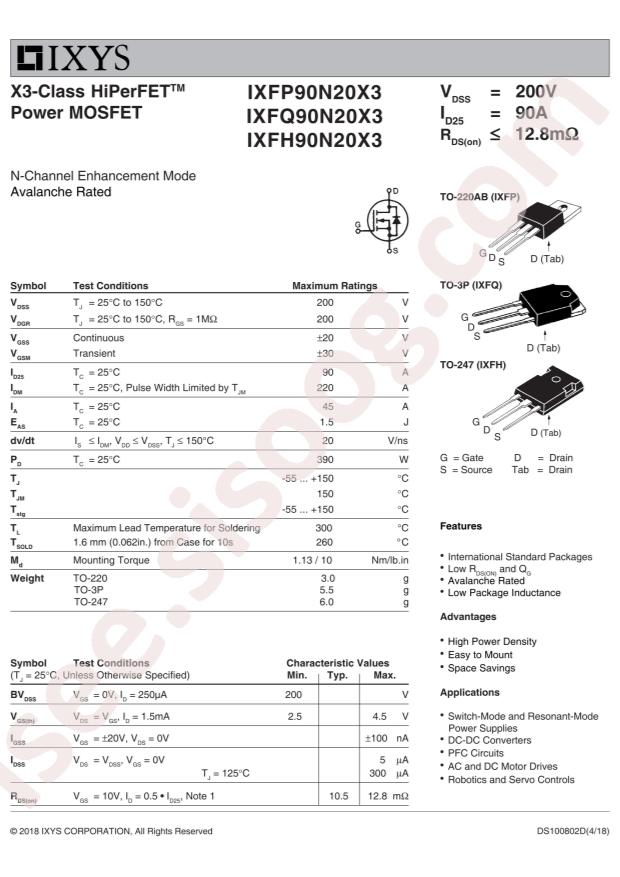

مشاهده دیتاشیت IXFP90N20X3

دانلود دیتاشیت

سایر مستندات

IXFx90N20X3 6 pages

مشخصات فنی

  • RoHS: true
  • Type: N Channel
  • Category: Triode/MOS Tube/Transistor/MOSFETs
  • Datasheet: Littelfuse/IXYS IXFP90N20X3
  • Operating Temperature: -55°C~+150°C@(Tj)
  • Power Dissipation (Pd): 390W
  • Total Gate Charge (Qg@Vgs): 78nC@10V
  • Drain Source Voltage (Vdss): 200V
  • Input Capacitance (Ciss@Vds): 5420pF@25V
  • Continuous Drain Current (Id): 90A
  • Gate Threshold Voltage (Vgs(th)@Id): 4.5V@1.5mA
  • Reverse Transfer Capacitance (Crss@Vds): 4pF@25V
  • Drain Source On Resistance (RDS(on)@Vgs,Id): 12.8mΩ@45A,10V
  • Package: TO-220
  • Manufacturer: IXYS
  • Series: HiPerFET™
  • Packaging: Tube
  • Part Status: Active
  • FET Type: N-Channel
  • Technology: MOSFET (Metal Oxide)
  • Drain to Source Voltage (Vdss): 200V
  • Current - Continuous Drain (Id) @ 25°C: 90A (Tc)
  • Drive Voltage (Max Rds On, Min Rds On): 10V
  • Rds On (Max) @ Id, Vgs: 12.8mOhm @ 45A, 10V
  • Vgs(th) (Max) @ Id: 4.5V @ 1.5mA
  • Gate Charge (Qg) (Max) @ Vgs: 78nC @ 10V
  • Vgs (Max): ±20V
  • Input Capacitance (Ciss) (Max) @ Vds: 5420pF @ 25V
  • FET Feature: -
  • Power Dissipation (Max): 390W (Tc)
  • Mounting Type: Through Hole
  • Supplier Device Package: TO-220
  • Package / Case: TO-220-3
  • detail: N-Channel 200V 90A (Tc) 390W (Tc) Through Hole TO-220
