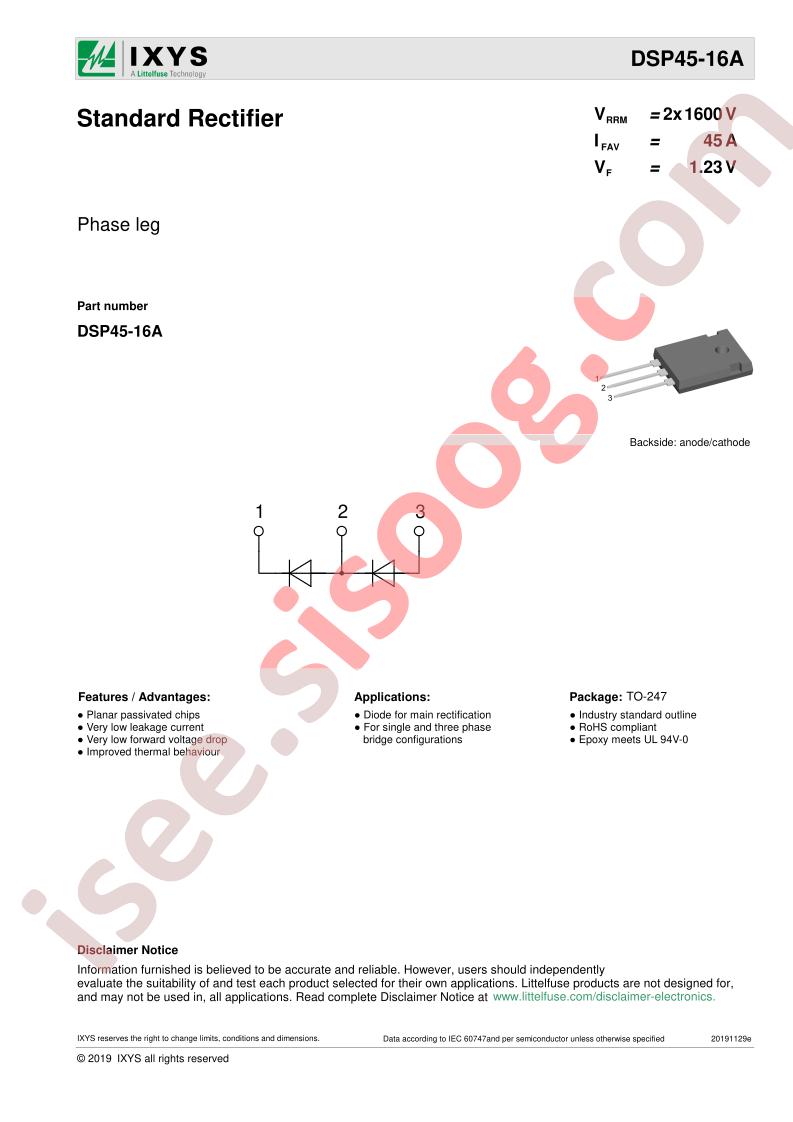

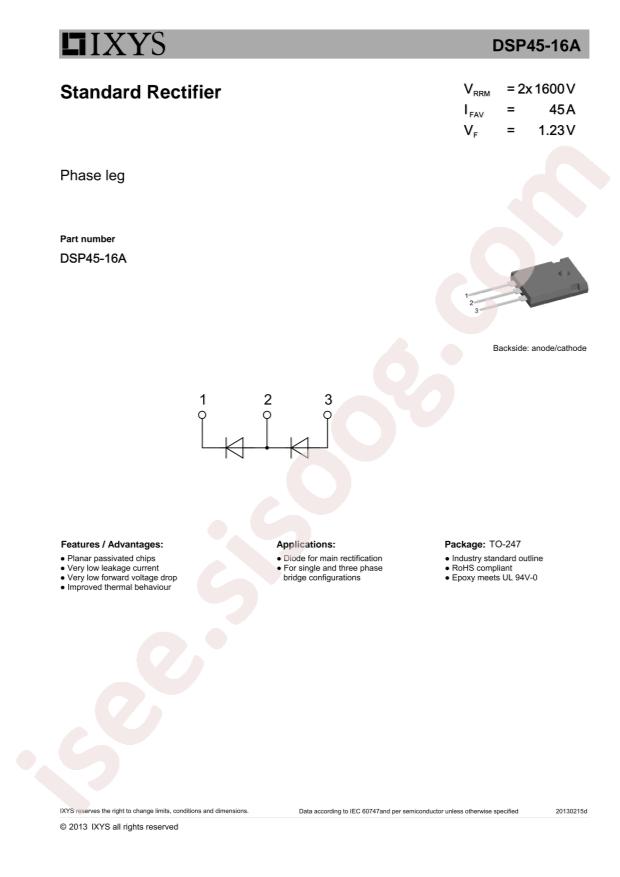

دیتاشیت DSP45-16A
مشخصات دیتاشیت
| نام دیتاشیت |
DSP45-16A
|
| حجم فایل |
371.29
کیلوبایت
|
| نوع فایل |
pdf
|
| تعداد صفحات |
5
|
مشخصات
-
RoHS:
true
-
Category:
Diodes/Diodes - General Purpose
-
Datasheet:
Littelfuse/IXYS DSP45-16A
-
Diode Configuration:
Dual
-
Reverse Voltage (Vr):
1.6kV
-
Forward Voltage (Vf@If):
1.57V@90A
-
Reverse Leakage Current:
40uA@1.6kV
-
Average Rectified Current (Io):
45A
-
Package:
TO-247
-
Manufacturer:
IXYS
-
Series:
-
-
Packaging:
Tube
-
Part Status:
Active
-
Diode Type:
Standard
-
Voltage - DC Reverse (Vr) (Max):
1600V
-
Current - Average Rectified (Io) (per Diode):
45A
-
Voltage - Forward (Vf) (Max) @ If:
1.28V @ 45A
-
Speed:
Standard Recovery >500ns, > 200mA (Io)
-
Current - Reverse Leakage @ Vr:
20µA @ 1600V
-
Operating Temperature - Junction:
-40°C ~ 175°C
-
Mounting Type:
Through Hole
-
Package / Case:
TO-3P-3 Full Pack
-
Supplier Device Package:
TO-247AD
-
detail:
Diode Array 1 Pair Series Connection Standard 1600V 45A Through Hole TO-3P-3 Full Pack
